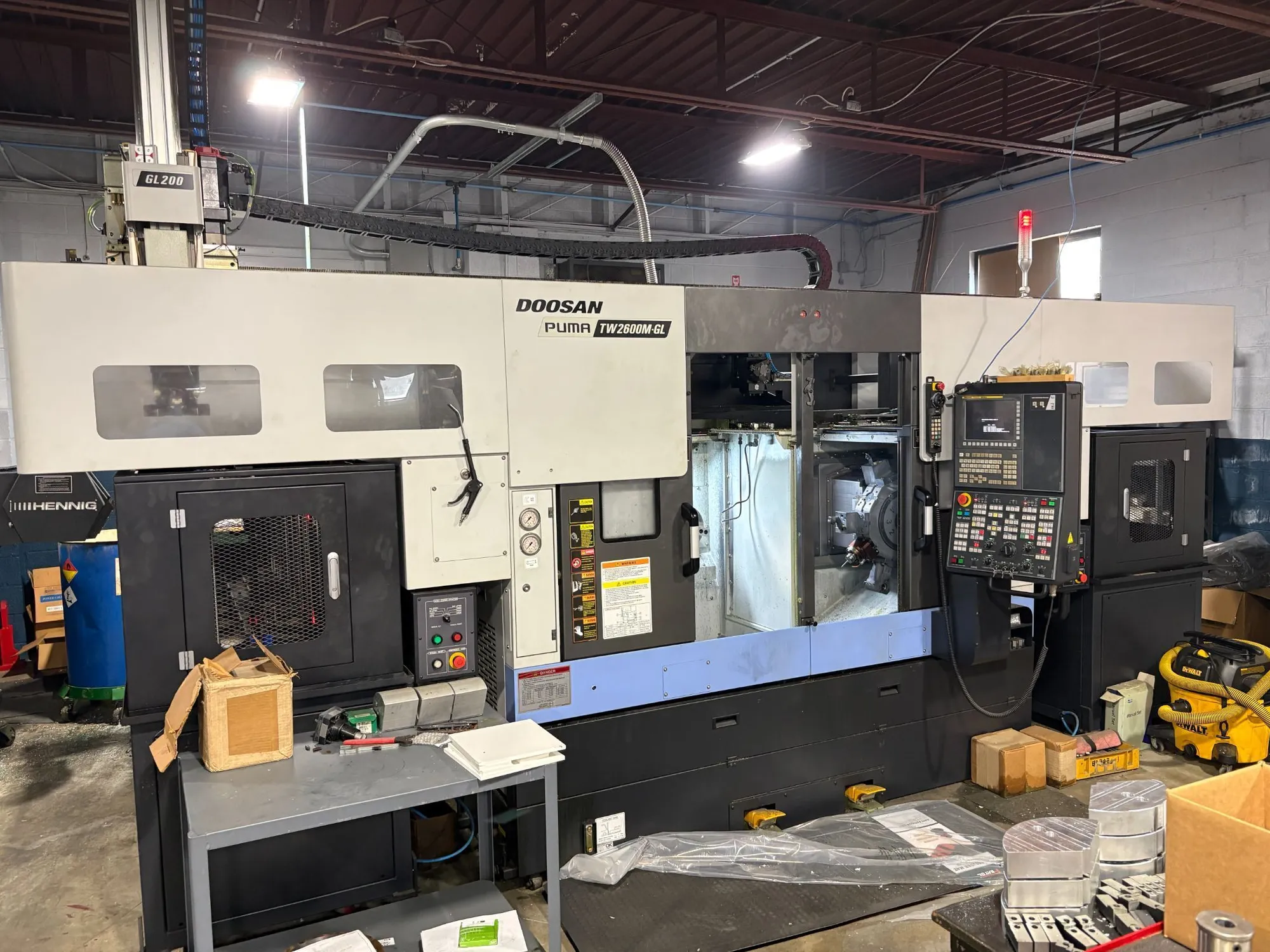

DOOSAN PUMA TW2600M-GL CNC TURNING CENTER, Fanuc i Plus CNC Control, (2) 8" 3-Jaw Chucks, 17.71" Swing, 14.17" Max Turning Diameter, 7" Max Turning Length, 2" Bar Capacity, 3500 RPM, (2) 10-Position Turrets w/ Live Tooling, Chip Conveyor & Coolant System, New 2019.
| CNC Control | Fanuc i Plus CNC | Fanuc i Plus CNC |
| # Axis | 6 | 6 |
| Max Swing Over Bed | 17.71" | 449.83 mm |
| Main Spindle Chuck Size | 8.25" | 209.55 mm |
| Max Turning Diameter | 14.17" | 359.92 mm |
| Max Turning Length | 6.69" | 169.93 mm |
| Center Distance | 18.11" | 459.99 mm |
| Max Part Weight | 13 lb | 5.9 kg |
| # Turrets | 2 | 2 |
| X-Axis (Cross Travel: Turret) | 7.5" | 190.5 mm |
| Z-Axis (Longitudinal Travel: Turret) | 7.1" | 180.34 mm |
| X2-Axis (Cross Travel of Lower Turret) | 7.5" | 190.5 mm |
| Z2-Axis (Longitud. Travel: Lower Turret) | 7.1" | 180.34 mm |
| Max Bar Capacity | 2" | 50.8 mm |
| Spindle Through Hole | 2.4" | 60.96 mm |
| Spindle Nose | A2-6 | A2-6 |
| Spindle Power | 25 hp | 18.6 kW |
| Max Spindle Speed | 3,500 RPM | 3,500 RPM |
| X-Axis Upper Turret Rapid Traverse Rate | 945 in/min. | 24,003 mm/min. |
| Z-Axis Upper Turret Traverse Rate | 945 in/min. | 24,003 mm/min. |
| X2-Axis Lower Turret Rapid Traverse Rate | 945 in/min. | 24 m/min. |
| Z2-Axis Lower Turret Head Longitudinal Rapid Traverse Rate | 945 in/min. | 24 m/min. |
| Live Tooling | Yes | Yes |
| Max Live Tooling Speed | 5,000 RPM | 5,000 RPM |
| Upper Turret Live Tooling Power | 10 hp | 7.5 kW |
| Upper Turret Positions | 10 | 10 |
| Lower Turret Positions | 10 | 10 |
| Lower Turret Live Tooling Power | 10 hp | 7.5 kW |
| Machine Cutting Hours | 578 | 578 |
| Dimensions | 152.6" x 106.9" x 133.65" | 152.6" x 106.9" x 133.65" |
| Weight | 16,097 lbs | 16,097 lbs |
Fanuc i Plus CNC Control, (2) 8" 3-Jaw Chucks, (2) BMT 55 Turrets w/ 10 Stations & Live Tooling, GL200 Gantry Loader w/ Part Flippers, (2) Part Stackers, Chip Conveyor & Coolant System.
*Excellent Condition, only 578 Cutting Hours
