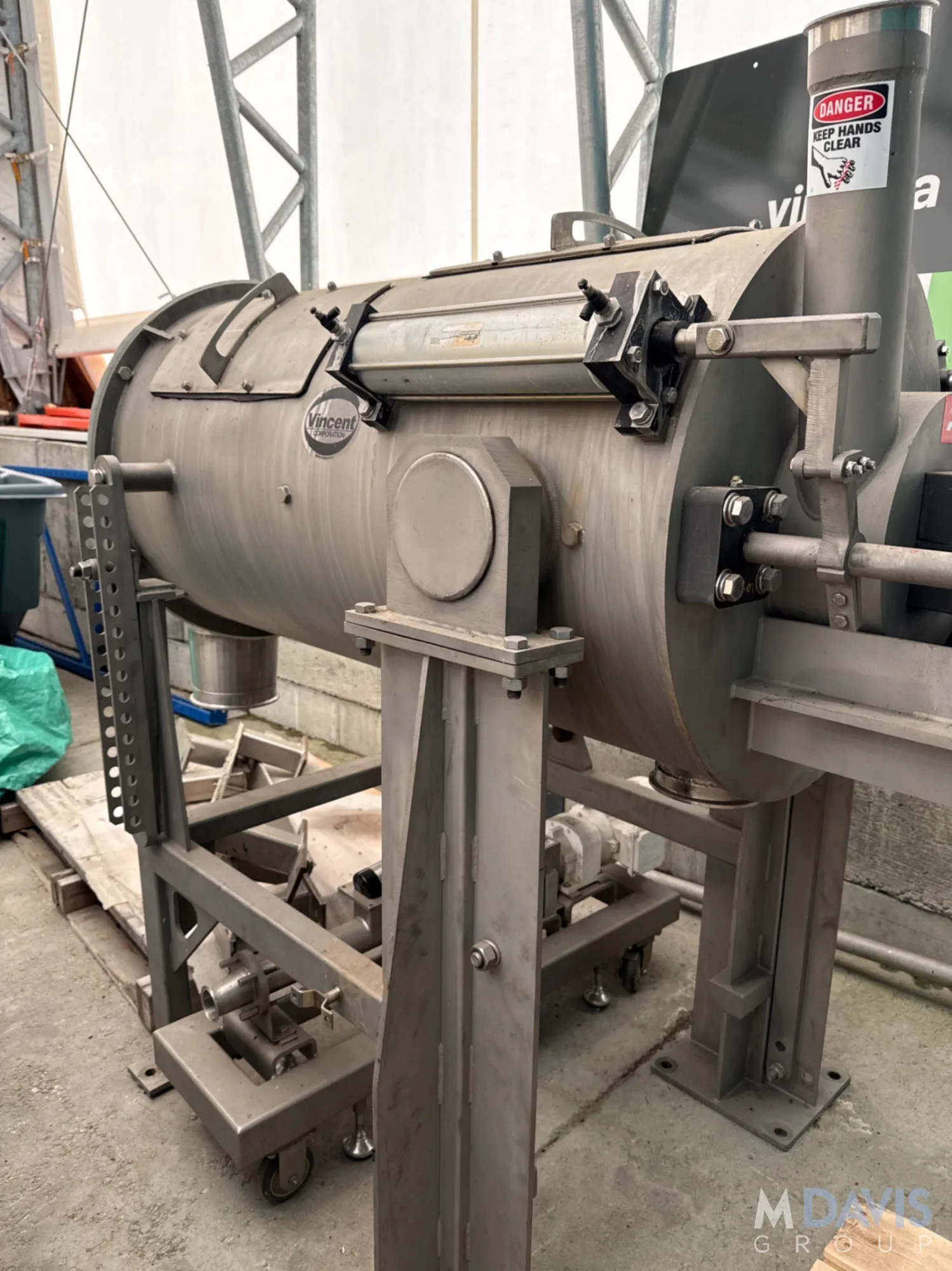

USED VINCENT FF-12

Vincent Corporation FF-12 Stainless Steel Fiber Filter, 28” dia x 54” long with side end discharge. Belt driven by a 10 HP motor.

The FF-12 Fiber Filter is a continuous filtration machine designed to separate suspended solids (fiber) from liquid streams at relatively high flow rates.

Uses a woven fabric sleeve (25–300 microns) as the filter media
Internal rotor creates pulsing/vibration to keep the fabric from clogging
Includes a backflush system to clean the filter during operation
Built for continuous duty, not batch filtration

Motor: ~10 HP
Capacity: ~100–500 GPM
Weight: ~1,600 lbs
Dimensions: ~8 × 3 × 5 ft
