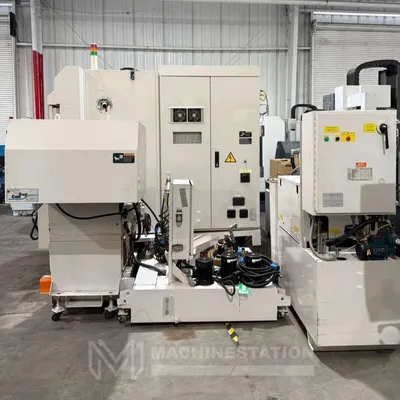

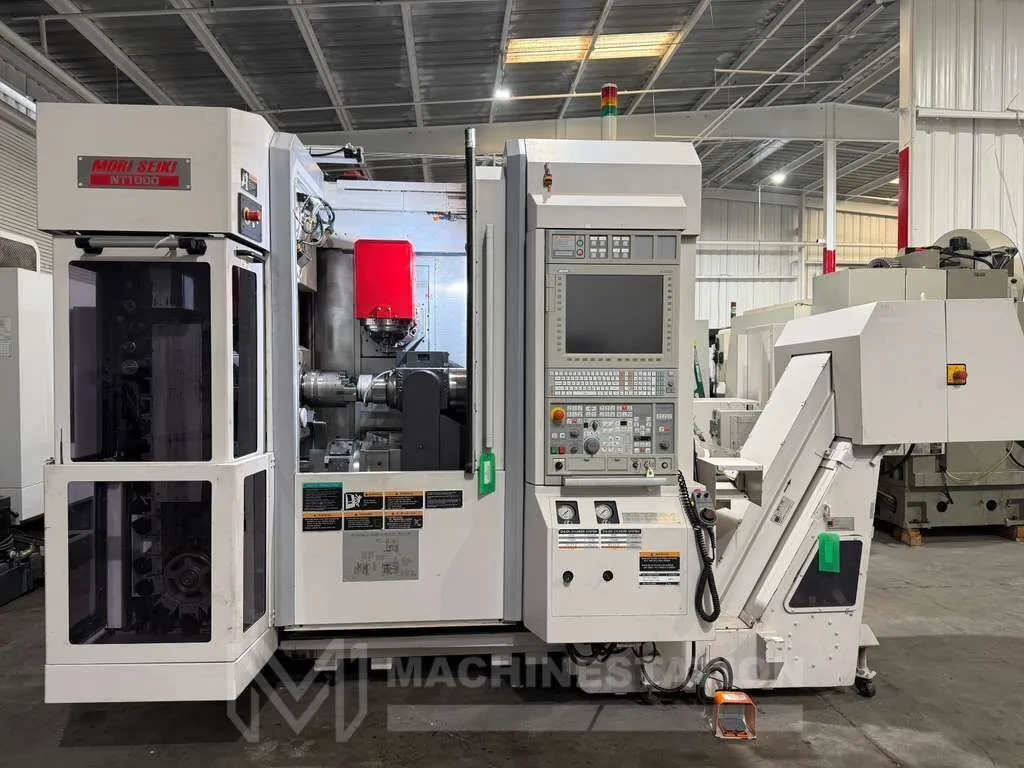

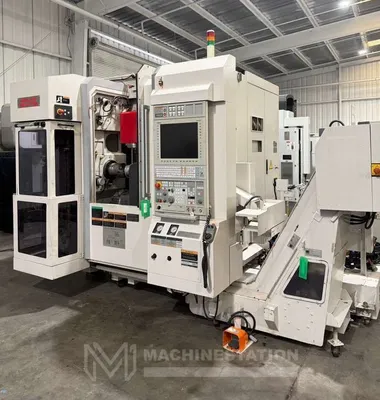

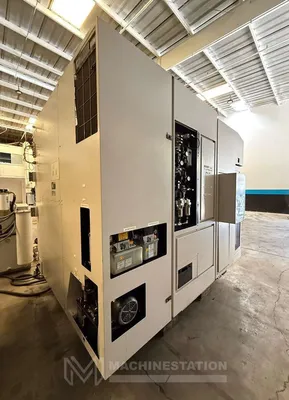

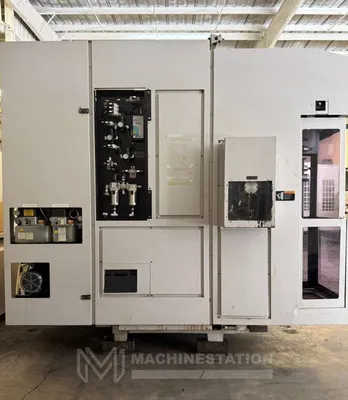

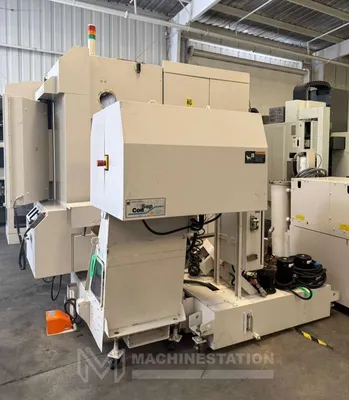

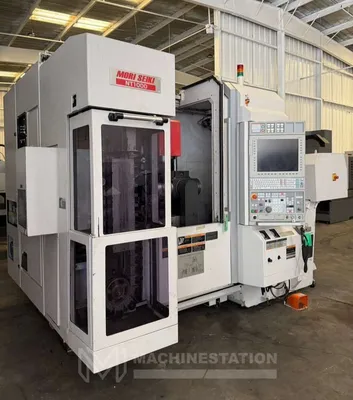

USED 2010 MORI SEIKI NT-1000WZM
Overview
Specifications
| # Axis | 8 | 8 |
|---|---|---|
| Swing | 14.5" | 368.3 mm |
| Machining Length | 16.6" | 421.64 mm |
| Chuck Size | 6" | 152.4 mm |
| Bar Capacity | 2" | 50.8 mm |
| Power | 15 hp | 11.2 kW |
| Max RPM | 6,000 RPM | 6,000 RPM |
| Turning Dia | 14.5" | 368.3 mm |
| Tailstock | No | No |
| Control | CNC (Mori Seiki MSX-711IV Series CNC Control) | CNC (Mori Seiki MSX-711IV Series CNC Control) |
| Dimensions | 100" x 106" x 119" High Approx. | 100" x 106" x 119" High Approx. |
| Weight | 18,040 lbs Approx. | 18,040 lbs Approx. |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:

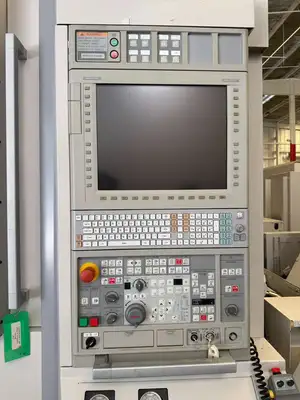

Mori Seiki MSX-711IV Series CNC Control
Rigid Tapping
Capacity:
Max Turning Diameter (Tool Spindle): 14.5″
Max Turning Diameter (Turret): 10.6″
Max Turning Length: 16.6″
Max Bar Capacity: 2.0″
Max Swing Over Bed: 14.5″
Swing Over Cross Slide (Tool Spindle): 14.5″
Swing Over Cross Slide (Turret): 11.8″
Travel:
X Axis Travel (Tool spindle): 15.0″
Y Axis Travel (Tool spindle): +/- 4.1″
Z Axis Travel(Tool spindle): 18.1″ + 6.1″
B Axis Travel: 240° (0.0001°) (±120°)
X2 Axis Travel (Turret): 6.1″
Z2 Axis Travel: 24.0″
BW Axis Travel: 0°, -25°, -90°, -180° (4 Positioning Angles)
C Axis: 360° (0.0001°)
X Rapid Traverse Rate: 1574.8 Inch Per Minute
Y Rapid Traverse Rate: 1574.8 Inch Per Minute
Z Rapid Traverse Rate: 1968.5 Inch Per Minute
X2 Rapid Traverse Rate: 787.4 Inch Per Minute
Z2 Rapid Traverse Rate: 1417.3 Inch Per Minute
Main Spindle:
Spindle Nose: A2-5
Spindle Bore: 2.4″
Spindle Speed: 6000 RPM
Spindle Motor: 15 HP
Workpiece Discharge Unit (Allowable Rotational Speed): 1000 RPM
Tool Spindle:
Single Station Pendulum Head
Tool Type: Capto C-5 Taper
Spindle Speed: 12,000 RPM
Spindle Motor: 12 HP
Automatic Tool Changer:
Capacity: 38 Tools
Max Tool Diameter (without Adjacent Tools): 5.1″
Max Tool Diameter (with Adjacent Tools): 2.7″
Max Tool Length: 9.8″
Max Tool Weight: 11 lbs.
Tool Changing Time: 1.2 Seconds
Turret:
Capacity: 10 Stations
Square Tool Size: 0.8″
Boring Tool Diameter: 1.2″
Turret Index Time: 0.19 Sec.
Rotary Tool Speed: 6,000
Rotary Tool Power: 2 HP
General:

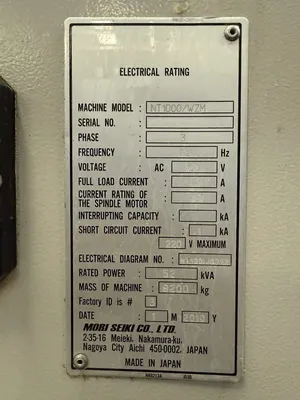

Power Source: AC 220 V, Three Phase, 60 Hz
Power Requirement: 52 kva
Overall Dimensions: 100″ x 106″ x 119″ High Approx.
Weight : 18,040 lbs Approx.
Equipped With

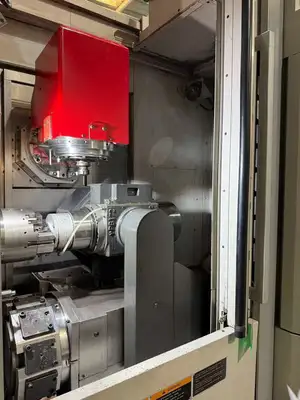

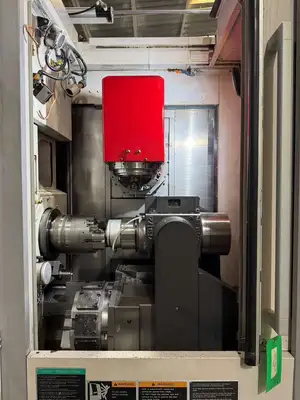

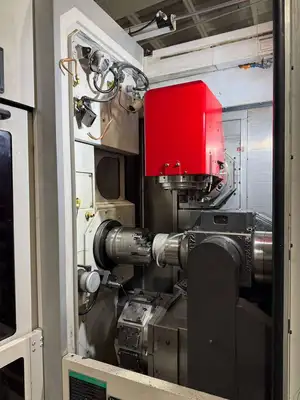

12,000 RPM Pendulum Milling Head
38-Station Tool Magazine
10 Station Live Tool Turret
Full C-Axis on Spindle
Y Axis Capability
6″ 3-Jaw BB206 Chuck On Spindle
Renishaw Reciever Installed
Tool Presetter
Workpiece Discharge Unit
Chip Blaster

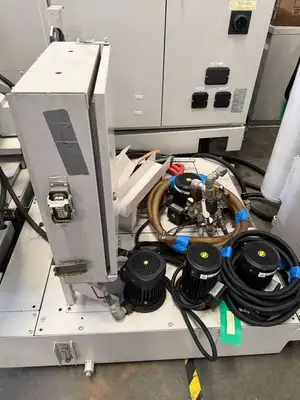

High Pressure Coolant

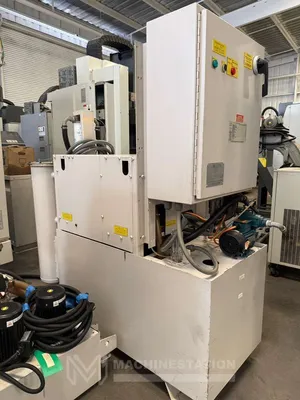

Coolant Tank
Chip Conveyor
