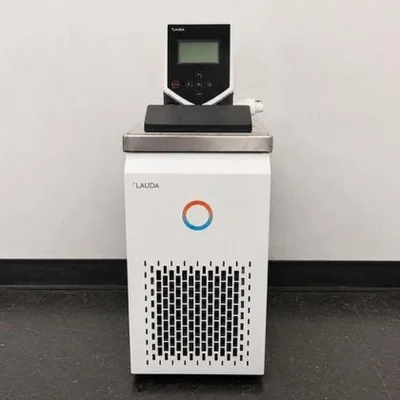

USED THERMO FISHER SCIENTIFIC ECO RE 630 S

The Thermo LAUDA ECO RE 630S is a high-precision refrigerated heating circulator designed for accurate temperature control in laboratory and industrial applications. It combines an integrated cooling system with a powerful circulation pump, enabling both heating and cooling operations within a wide temperature range.

The unit features microprocessor-based PID control, ensuring highly stable and reproducible temperature conditions for sensitive experiments. Its compact benchtop design and internal/external circulation capability make it ideal for biotech, pharmaceutical, and chemical laboratories.

---------------------------------------------------------------
Key Highlights

- Wide temperature range: -30°C to +200°C
- High temperature stability: ±0.02 K
- Integrated cooling + heating system (all-in-one unit)
- Vario pump (6 adjustable levels) for precise flow control
- Flow rate up to ~22 L/min
- Microprocessor PID controller with LCD display
- Internal & external circulation capability
- Stainless steel bath with drain valve
- USB interface + upgradeable communication modules
- Compact benchtop footprint (~27 kg system)
- Unused condition (premium resale value)
---------------------------------------------------------------

Applications / Uses

- Reactor temperature control
- Sample conditioning and incubation
- Bioprocessing & pharmaceutical R&D
- Analytical instruments temperature control
- Materials testing & calibration
- Chemical synthesis and reaction control
- External device cooling (HPLC, spectroscopy, etc.)
---------------------------------------------------------------

Typical Specifications (Summary)

- Type: Refrigerated heating circulator / recirculator
- Temperature Range: -30°C to +200°C
- Temperature Stability: ±0.02 K
- Pump Flow Rate: up to ~22 L/min
- Pump Pressure: ~0.6 bar
- Bath Volume: ~4.6 – 5.7 L
- Cooling Capacity: ~0.3 kW @ 20°C
- Power: ~1–2.3 kW depending on configuration
- Dimensions: ~200 × 430 × 581 mm
- Weight: ~26–27 kg
---------------------------------------------------------------

Typical Configuration Includes

- ECO RE 630S main unit
- Integrated bath & circulation system
- Control panel (LCD interface)
- Pump connections (inlet/outlet)
- Power cable
- Optional communication interfaces (USB/RS232 etc.)
