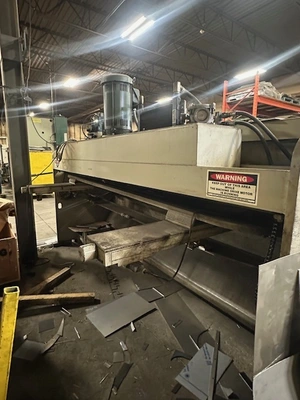

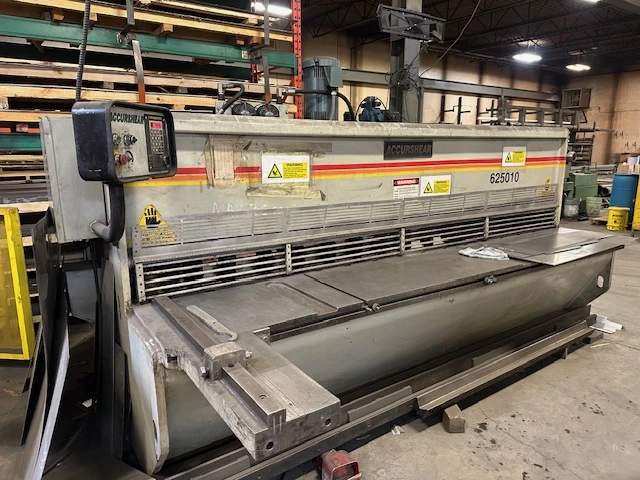

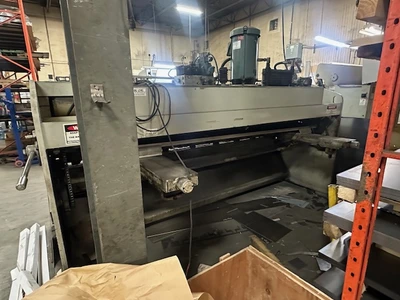

Accurshear 625010 Hydraulic Power Squaring Shear .25″ x 10′

1998 Accurshear Hydraulic Shear 10′ x 1/4″ Model 625010

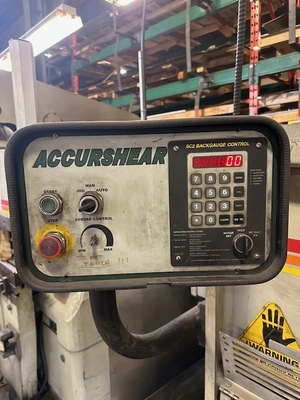

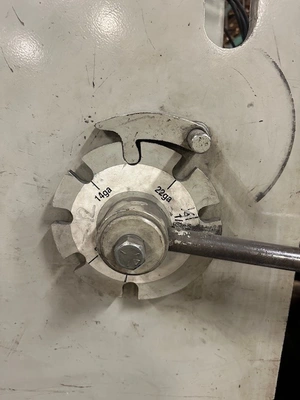

Standard Specifications: Capacity                                             10′ x 1/4″ Knife Size                                                       1″ x 3″ x 124″ Rake Angle                                         1/4″ per foot (1°) Strokes per Minute, Full                   22 Strokes per Minute, Short                42 Number of Hold Downs                     16 Hold Down Tonnage                          16 Motor                                                  20 HP Electrics                                              575/3/60 Supplied with a 600/480 transformer 36″ Accurshear Programmable Back Gauge 4’ Squaring Arm Left Mounted 2 Front Supports Manual Blade Gap Adj. Foot Pedal
