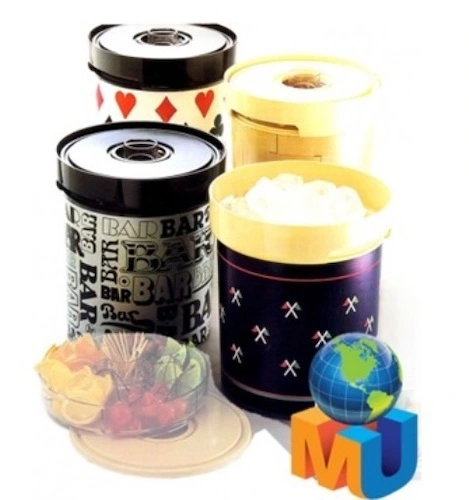

Ice Bucket with Lid

PLASTIC INJECTION MOLD

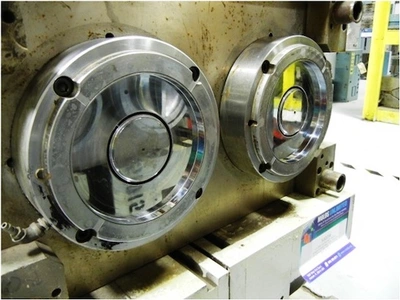

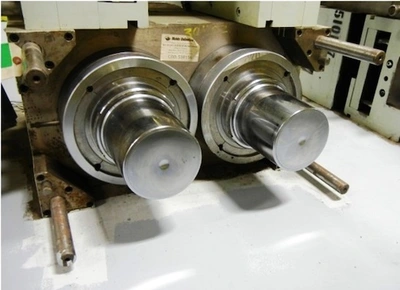

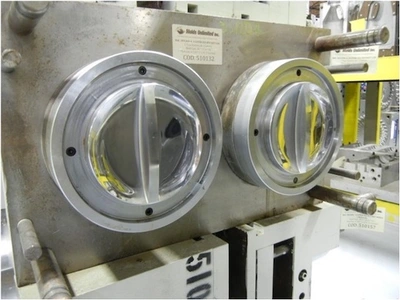

Description: 3 Liter Ice Bucket Lid #1 & #2

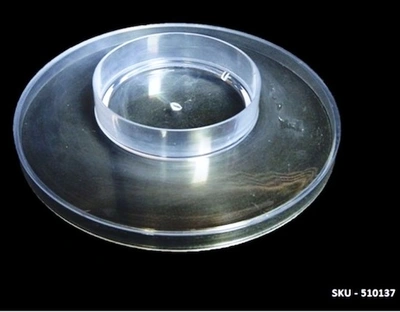

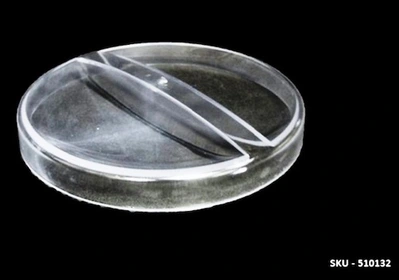

Reference: #1 301204-A 510132 / #2 301108 - 510137
Mold size: #1 26 x 17.5 x 16 / #2 26 x 17 1/2 x 16
Cavities: #1 & 2- 2
Runner: #1 & 2 Hot
Product size: #1 diam 3 / #2 diam 6 3/4
Product weight:#1 110 g /#2 98g
Material: #1 & 2 PS
Notes: Samples available
August 2015

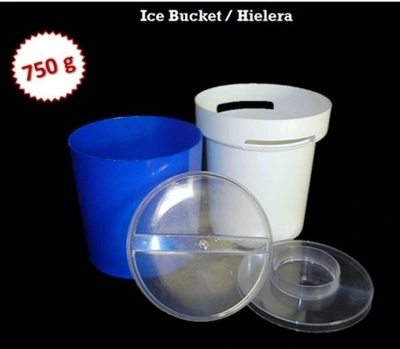

Description: 3 Liter Ice Bucket Inner (4 mold set)
Reference: 301107 - 510156
Mold size: 29 1/2 x 24 3/4 x 16
Cycle: 45 sec (Without cooling)
Cavities: 2
Runner: Hot
Product size: diam sup 7 3/4
Product weight: 344 g
Material: PP

Description: 3 Liter Ice Bucket Shell (4 Mold Set)
Reference: 301106 - 510157
Mold size: 29 1/2 x 26 1/2 x 16
Cycle: 45 sec (Without cooling)
Cavities: 2
Runner: Hot
Product size: diam sup: 6 3/4
Product weight: 296 g
Material: PS
