USED 1995 Hermes RC-812, PARAGON RC-18, NEW 1995,

2" Dia. Cap 15hp Motor HP Hermes RC-812, PARAGON RC-18, NEW 1995, CENTERLESS GRINDER

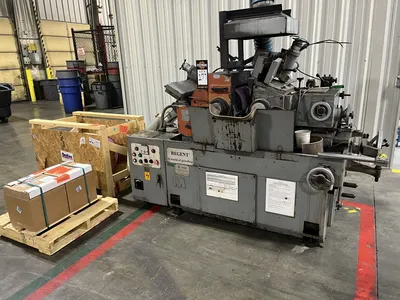

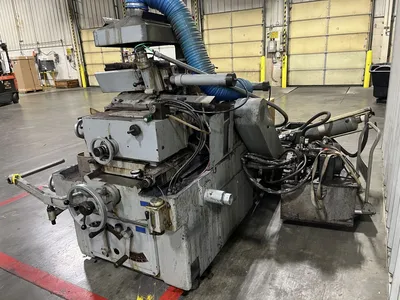

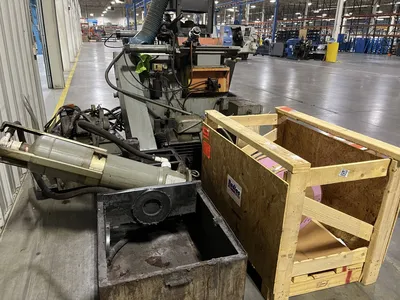

 HERMES "REGENT" - Made by "PARAGON"

       Centerless Grinder

Model:  RC-1812   S/N: 1812287    New:  1995

Capacity:  Up to 4" Diameter

Std. Grinding Wheel Size:

18"Dia. x 12"W x 10"B

Std. Regulating Wheel Size:

12"Dia. x 8"W x 10"B

Regulating Wheel Speeds (10):

Low Range:  13, 20, 35, 44 & 55 RPM

High Range:  70, 89, 121, 153 & 308 RPM

Regulating Wheel Tilt Angle:  +/- 5°

Equipped With:

WorkRest

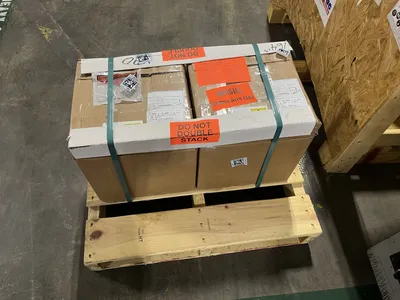

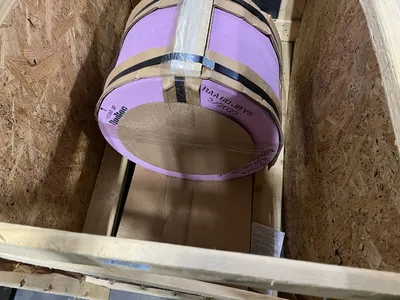

Extra Wheels

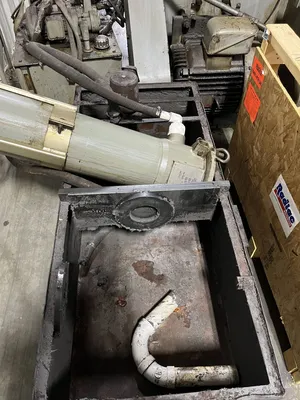

Coolant System

Hydraulic Grinding Wheel Dresser

Hydraulic Regulating Wheel Dresser

External Hydraulic System

30 H.P./3/60/230-460 Volts Grinding Wheel Motor,

 73.2 Amps with 230 Volts

 36.8 Amps with 460 Volts

Machine Features:

Grinding spindle with fine hand scraped

 hydrodynamic bearings made of steel

 and phosphor bronze alloy with oil

 lubrication, firmly maintaining high

 precision rotation and rigidity with

 heavy duty grinding.

Regulating Wheel is an advanced spindle

 that dose not require a flange and

 utilizes precision angular contact

 bearings. With dual-end supports firmly

 maintain spindle super precision

 rotation and rigidity.

Hydrostatic bearings of the grinding

 spindle are surrounded by high pressure

 oil film, eliminating metal-to-metal

 contact. This eliminates overheating,

 less power consumption, high vibration

 dampening and no oil leakage.

Upper & Lower Slides

"Paragon USA" - Distributed by:

 GMSI Group

17 Town Forest Rd.

Oxford, MA 01540

(508) 987-0121

[email protected]

FOR MORE INFORMATION: Call Andy at 973-497-7600
