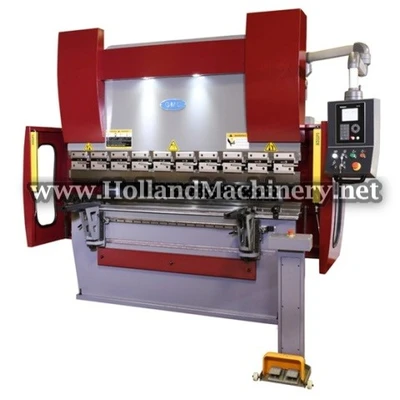

GMC 4' x 45 TON PRESS BRAKE CNC

New "GMC" 45 Ton Hydraulic Press Brake
Model HPB-4504CNC
Maximum Pressure 45 tons
Bending Length Capacity 49-1/4"
Distance between Upright (housing) 33-1/2"
Ram Stroke Travel 4"
Cylinder Travel Adjustment, Max 2"
Table Width 6"
Distance between Table and Ram 13"
Throat Depth 8-1/2"
Back Gauge Distance 24"
Back Gauge Repeatability .0039"
Y Axis Repeatability .0039"
Approach Speed, Inch/ Second 3.54"
Working Speed, Inch/ Second 0.78"
Return Speed, Inch / Second 2.75"
Main Motor 5-1/2 HP
Servo Motor for Back Gauge 1 HP
Servo Motor for Bending Angle Setting 1/2 HP
Machine Weight 6,150 lbs
Machine Size 71" x 56" x 81"

STANDARD:
Delem 41, 2 Axis CNC control with 100 programs
( 2 ) 24" front support arms on T slot movement
Quick release segmented punch holder
Full Length Gooseneck Punch American Style
Full Length Vee Die with 7 assorted sizes
Lntech Light Curtain System
Side and Back Safety Fence
Movable Foot Pedal with Estop meet OSHA safety standard

OPTIONAL:
Custom Tooling, Made in the USA
Single V Die Holder
On-site training
