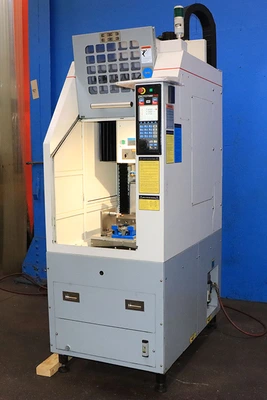

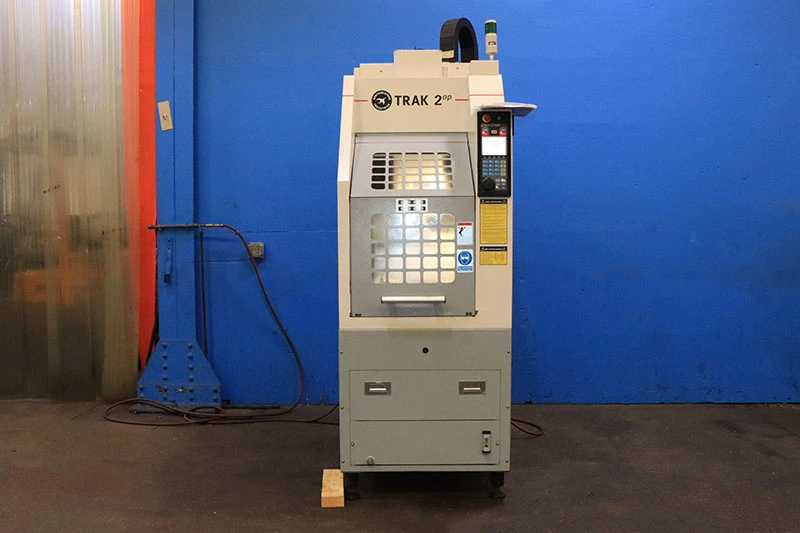

USED 2014 Southwest Ind. TRAK 2OP

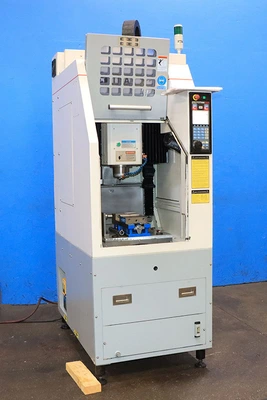

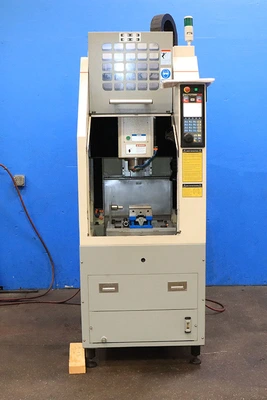

14" X Axis 12" Y Axis Southwest Ind. TRAK 2OP VERTICAL MACHINING CENTER, TMX Control, 8 ATC, 30 BT, 3 HP, 5,000 RPM,

SOUTHWESTERN INDUSTRIES MACHINING CENTER

MODEL: TRAK 2ND OP, S/N: 142DQ636, NEW: 2014

SPECIFICATIONS:

TABLES SIZE ...................... 18" X 15"

TABLE LOAD CAPACITY .............. 500 LBS

TRAVELS:

TABLE  (X-AXIS) .................. 14"

SADDLE (Y-AXIS) .................. 12"

HEAD  (Z-AXIS) ................... 17"

MAX SPINDLE NOSE TO TABLE ........ 20.25"

MIN SPINDLE NOSE TO TABLE ........ 2.75"

SPINDLE CENTER TO COLUMN FACE .... 14"

QUILL DIAMETER ................... 2.2"

SPINDLE TAPER .................... #30BT

SPINDLE SPEED RANGE .............. 250 - 5,000 RPM

SPINDLE MOTOR .................... 3 HP

MAX RAPID SPEEDS ................. 500 IPM

APPROXIMATE DIMENSIONS ........... 30.5"W x 52"D x 101"H

APPROXIMATE MACHINE WEIGHT ....... 2,400 LBS.

EQUIPPED WITH:

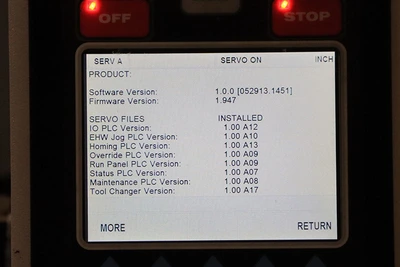

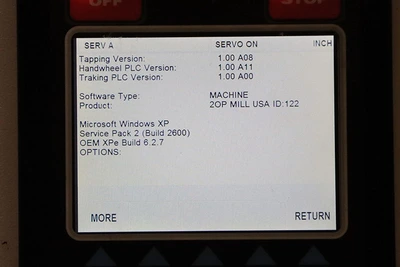

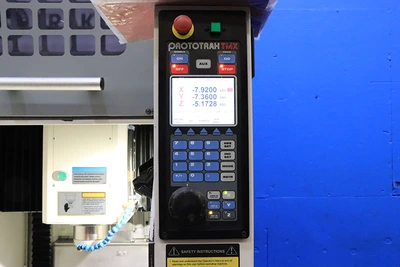

PROTO-TRAK MODEL: TMX CONTROL,

   CONVERSATIONAL OR G-CODE PROGRAMMING,

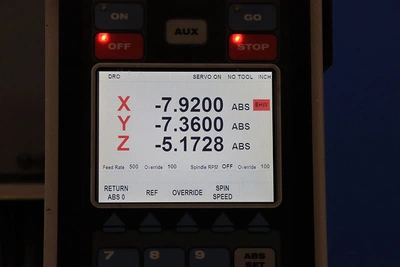

   5" LCD SCREEN,

   RIGID TAPPING, LINEAR & CIRCULAR INTERPOLATION,

   THREE AXIS, CANNED CYCLES,

   & MUCH MUCH MORE!

TWO USB PORTS

BALL SCREWS & SERVO MOTORS FOR X,Y & Z AXES

8 STATION AUTOMATIC TOOLCHANGER

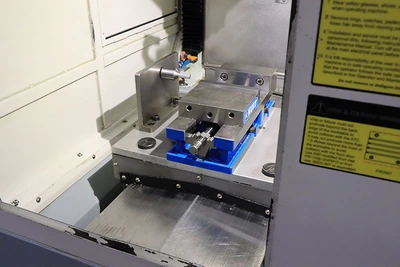

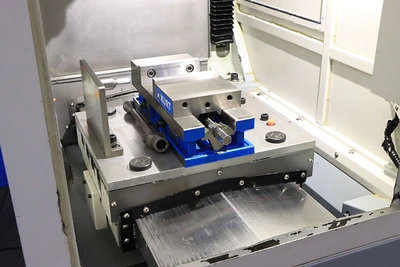

BUILT IN JERGENS BALL LOCKS ON TABLE

AUTOMATIC LUBRICATION SYSTEM

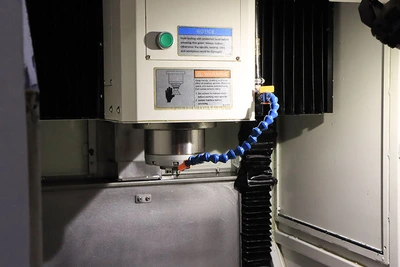

COOLANT SYSTEM

3 HORSE POWER SPINDLE MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

FOR MORE INFORMATION: Call David at 973-497-7570
