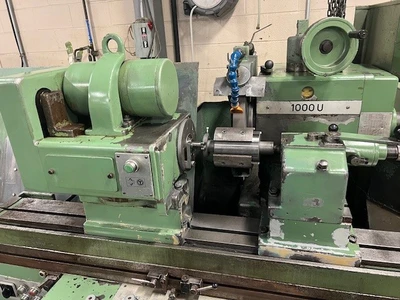

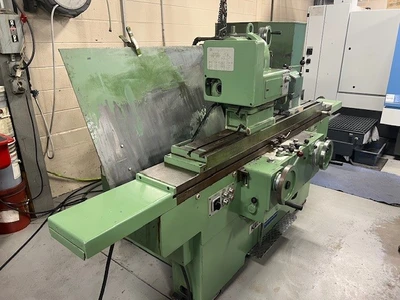

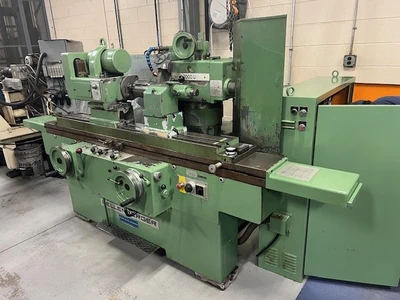

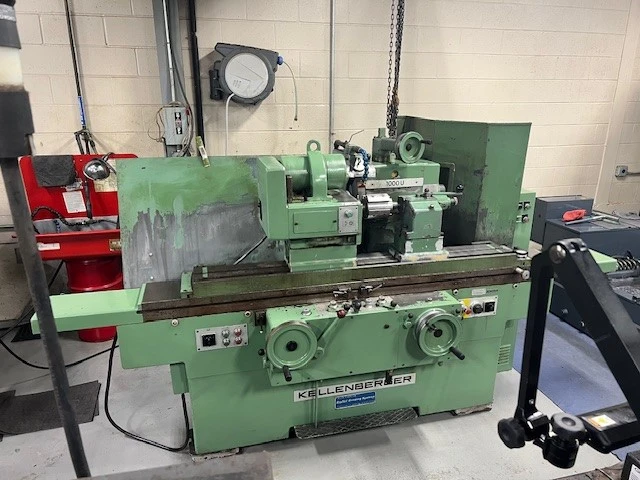

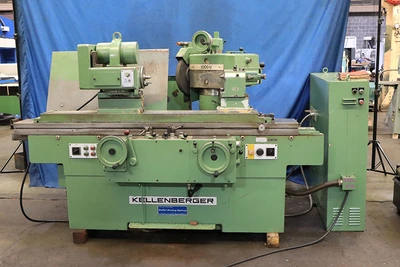

USED 1982 Kellenberger 1000U, 1982, FULL AUTO CYCLE, I.D., IN PLANT

19.8" Swing 40" Centers Kellenberger 1000U, 1982, FULL AUTO CYCLE, I.D., IN PLANT OD GRINDER, HYD. TABLE, AUTO INFEED, PLUNGE, RAPID, SPARKOUT

  19.8" x 40" KELLENBERGER "SWISS"

     SUPER-PRECISION UNIVERSAL

   I.D./O.D. CYLINDRICAL GRINDER

** PRESENTLY EQUIPPED WITH FACTORY RISERS **

** MACHINE CAN BE EQUIPPED TO GRIND O.D.,

     I.D & FACE GRINDING TASKS **

MODEL: 1000U      S/N:  1753/455       MFG. 1982

DISTANCE BETWEEN CENTERS ............ 39- 3/8"

DISTANCE BETWEEN CENTERS WITH

   TAILSTOCK OVERHANGING ............ 47- 1/4"

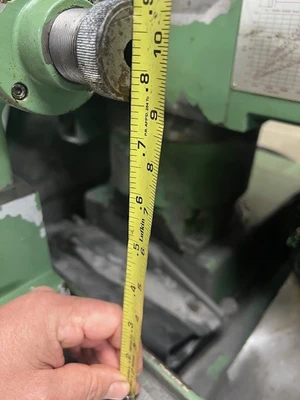

HEIGHT OF CENTERS,

   WITH REMOVABLE RISERS ............ 9- 27/32"

STANDARD SWING WITHOUT RISERS ....... 9.8"

PRESENT SWING WITH 100mm RISERS

   THAT ARE WITH THE MACHINE ........ 19.8"

TABLE:

LONGITUDINAL TABLE TRAVEL ........... 51- 13/16"

LONGITUDINAL TABLE TRAVEL PER

  TURN OF HANDWHEEL:

  COARSE ............................ 25/32"

  FINE .............................. 3/32"

LONGITUDINAL TABLE SPEED, HYD. ...... 0.6 - 240" IPM

TABLE SWIVELS ....................... 9°

REVERSING DWELL ..................... 0 TO 5 SECONDS

GRINDING WHEEL INFEED:

  1 GRADUATION OF FEED SCALE ........ 0.0002"

  AUTOMATIC FEED, MAXIMUM ........... 0.036"

  AUTO. INFEED PER TABLE REVERSAL ... 0.00005" TO .0012"

  INFEED FOR PLUNGE GRINDING ........ 0.00004" TO .002"

  MICROMETER STOP, 1 GRADUATION .... 0.00005"

UNIVERSAL GRINDING SPINDLE HEAD:

  MOVEMENT OF WHEEL SLIDE ........... 11-1/4"

  HYDRAULIC RAPID WHEEL SLIDE,

   ADVANCE/RETRACTION STROKE ........ 1-37/64"

  GRINDING WHEEL SPEEDS (4) ... 1500, 1700, 2200& 3600 RPM

  GRINDING WHEEL FOR CYLINDRICAL

   GRINDING ......................... 16" x 2" x 5"

  GRINDING WHEEL (FACE GRINDING) .... 10" x 3/4" x 3"

  SWIVEL OF GRINDING HEAD

  WITH LOCKING EVERY 90° ............ 270°

  VERTICAL MOTION OF GRINDING

   SPINDLE HEAD, HEIGHT OF CENTERS .. 4-59/64" TO 13-25/32"

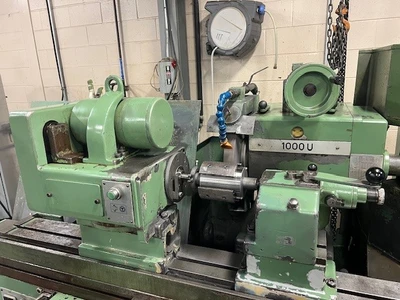

WORKHEAD:

  INFINIT. VARIABLE SPINDLE SPEEDS .. 10 - 400 RPM

  WORKHEAD SWIVELS .................. 360°

  INSIDE TAPER OF WORK SPINDLE ...... #5MT

APPROXIMATE FLOOR SPACE REQUIRED .... 106" x 64" x 66"H

APPROXIMATE MACHINE WEIGHT .......... 6,500 LBS

MACHINE FEATURES:

HYDRAULIC OPERATION FEATURING:

-SINGLE LEVER CONTROL

-INFINITELY VARIABLE TABLE TRAVERSE

-AUTOMATIC INFEED

-PLUNGE INFEED

-RAPID WHEEL ADVANCE & RETRACTION

-4 HP WHEEL HEAD MOTOR, ALL THREE SPINDLES

   ARE DRIVEN BY THIS MOTOR

-"ZUMBACH" VARIABLE SPEED SYSTEM FOR THE WORKHEAD

-WORKHEAD SPINDLE IS BOTH "LIVE" & "DEAD"

EQUIPPED WITH:

SWING AROUND I.D. GRINDING ATTACHMENT

I.D. GRINDING SPINDLE PROVIDED, NOT SHWON IN PHOTOS

ADJUSTABLE CENTER HEIGHT FEATURE

SPECIAL NOTE:

THIS MACHINE IS PRESENTLY SET UP FOR 19.8"

 SWING, WITH FACTORY RISERS.

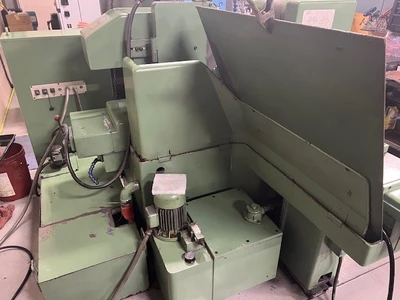

COOLANT SYSTEM

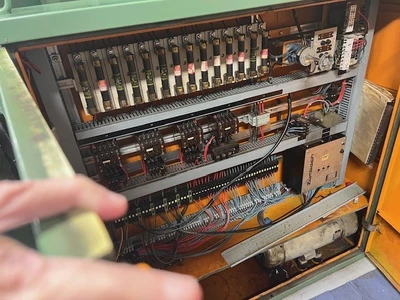

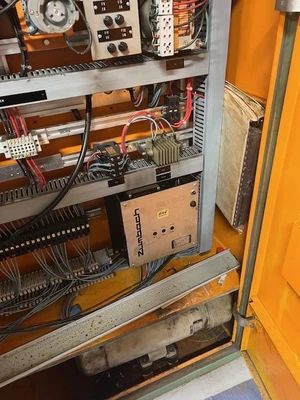

MACHINE IS PRESENTLY WIRED FOR 3/60/230 VOLTS

** INSPECT UNDER POWER IN OUR HARRISON, NEW JERSEY WAREHOUSE **

** SUPERB CONDITION & APPEARANCE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
