USED 2014 CERTIFIED COMPARATOR PRODUCTS CC-20, 2014, HEDINEHAIN ND-1203 DRO, EDGE DET.
Overview
Description

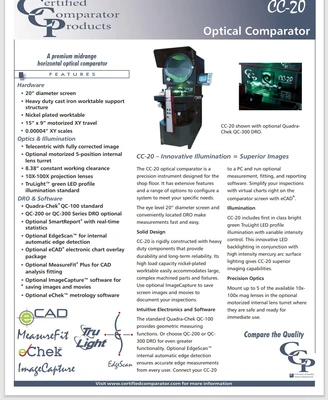

20" Screen CERTIFIED COMPARATOR PRODUCTS CC-20, 2014, HEDINEHAIN ND-1203 DRO, EDGE DET. OPTICAL COMPARATOR, 10X & 20X

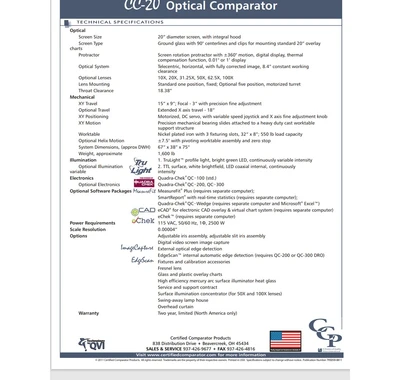

Specifications
20" CERTIFIED COMPARATOR PRODUCTS
MODEL: CC-20 "MADE IN USA"

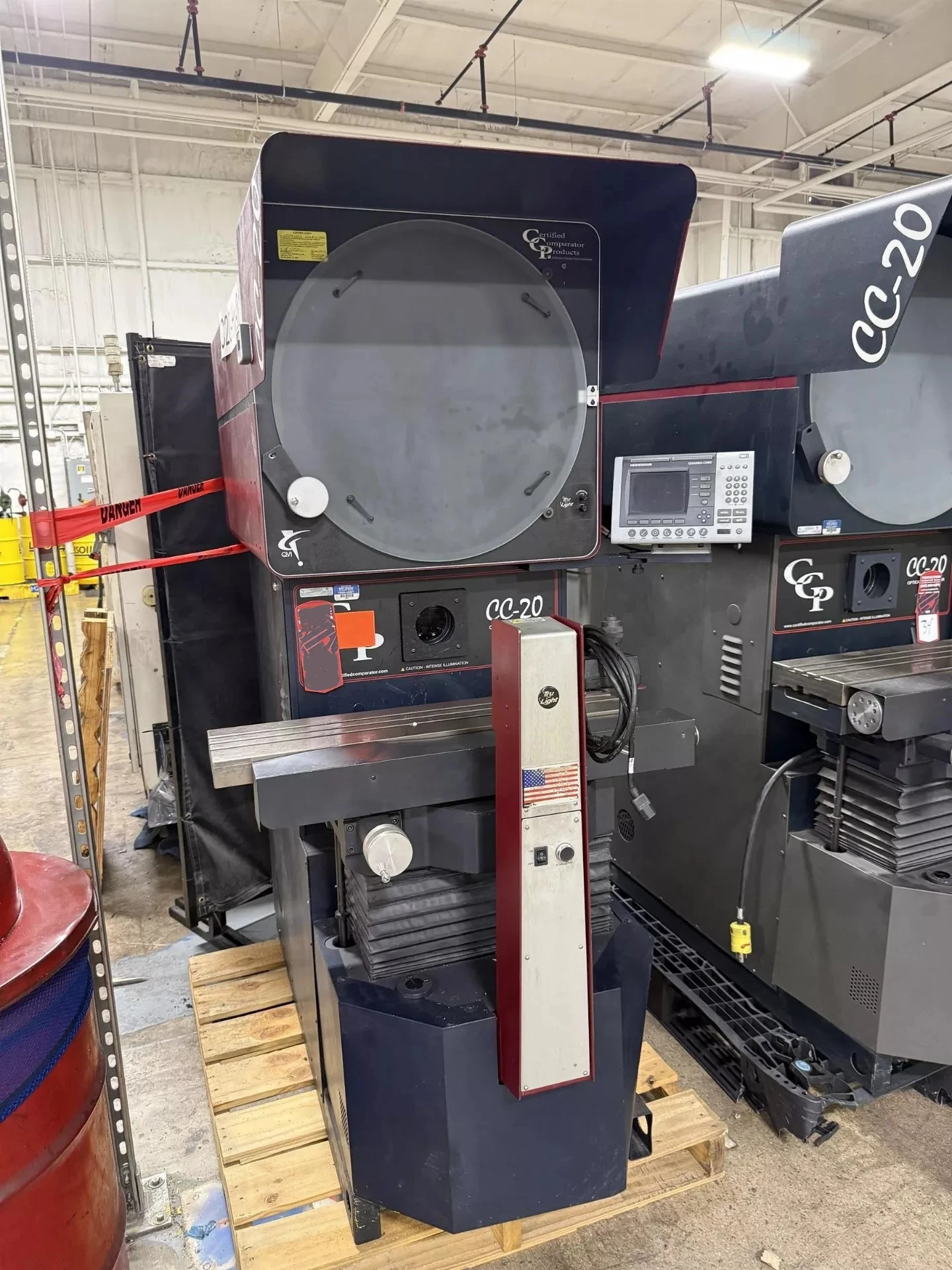

FLOOR MODEL OPTICAL COMPARATOR (CORRECT IMAGE)

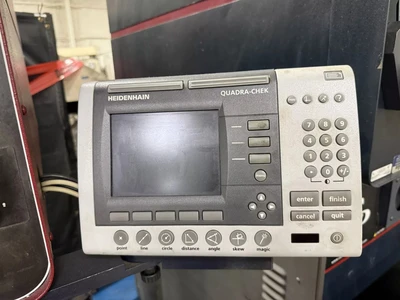

HEIDENHAIN QUADRA CHEK ND-1203
DIGITAL READOUT WITH PROGRAMMABLE
GEOMETRIC FUNCTIONS & WITH
INTERNAL AUTO EDGE DETECTION

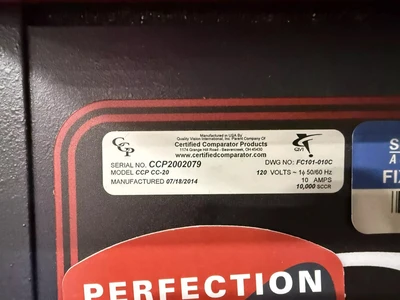

S/N: CCP2002079 NEW: 2014
SPECIFICATIONS:

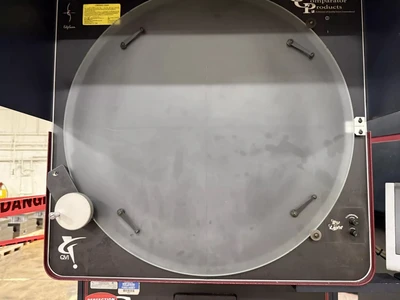

SCREEN DIAMETER: ............... 20"

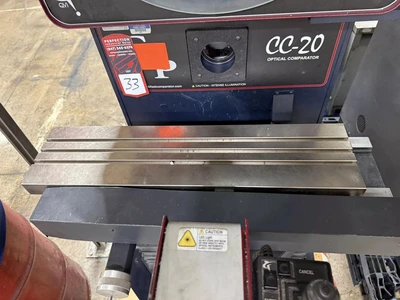

SIZE OF MEASURING TABLE: ....... 32" x 8"
MEASURING CAPACITY
- LONGITUDINAL TABLE TRAVEL: ... 15" (X)
- VERTICAL TABLE TRAVEL: ....... 9" (Y)
- FOCUS TRAVEL ................. 3" (Z)
ANGULAR MEASURING CAPACITY: .... 360° CHART ROTATION
THROAT CLEARANCE: .............. 18.38"
LOAD CAPACITY ON TABLE: ........ 550 LBS.
DIMENSIONS: ............... 67" L-R x 38" F-B x 75"H
MACHNE WEIGHT: ................. 1,600 LBS. APPROX
EQUIPPED WITH:
- CCP MODEL "Q-CHECK" COMPUTATIONAL
3-AXIS DIGITAL READOUT SYSTEM, X, Y & Q AXES,
WITH PROGRAMMABLE GEOMETRIC FUNCTIONS
-INTERNAL OPTICAL EDGE DETECTION
-DIGITAL DISPLAY OF ROTARY SCREEN PROTRACTOR,
0.01° OR 1' VERNIER.
THIS IS THE "Q" AXIS ON THE DRO.
-X & Y SCALE RESOLUTION 0.000040" (1um)

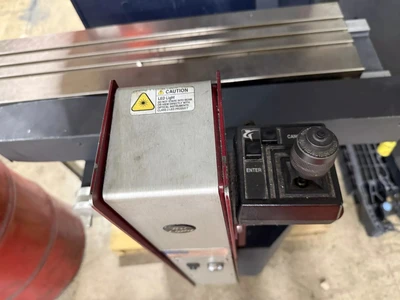

-POWER TABLE MOVEMENT, LEFT & RIGHT & UP & DOWN,
BY JOYSTICK.
-MANUAL TABLE MOVVEMENT BY FINE ADJUSTMENT KNOB
-POWER 5-POSITION LENS TURRET
-10X, 20X LENSES ARE WITH OUR MACHINE
-TELECENTRIC OPTICS WITH FULLY CORRECTED IMAGE
-EYE LEVEL 20" DIAMETER SCREEN
-ELECTRICAL 1/60/115 VOLTS AC, 10 AMPS
CALIBRATED ON 05/20/2024 BY:
CRESCENT GAGE & TOOL SALES CO., INC.
3809 MELCER DRIVE
ROWLETT (DALLAS) TX 75088
(972) 475-4265
CERTIFICATE No. 13745-CCP2002079
** EXCELLENT CONDITION & APPEARANCE **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
FOR MORE INFORMATION: Call Andy at 973-497-7600
