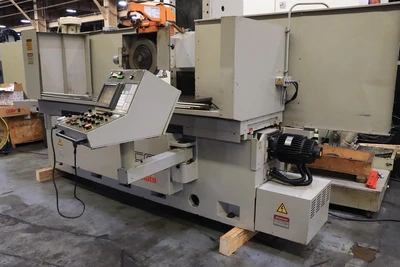

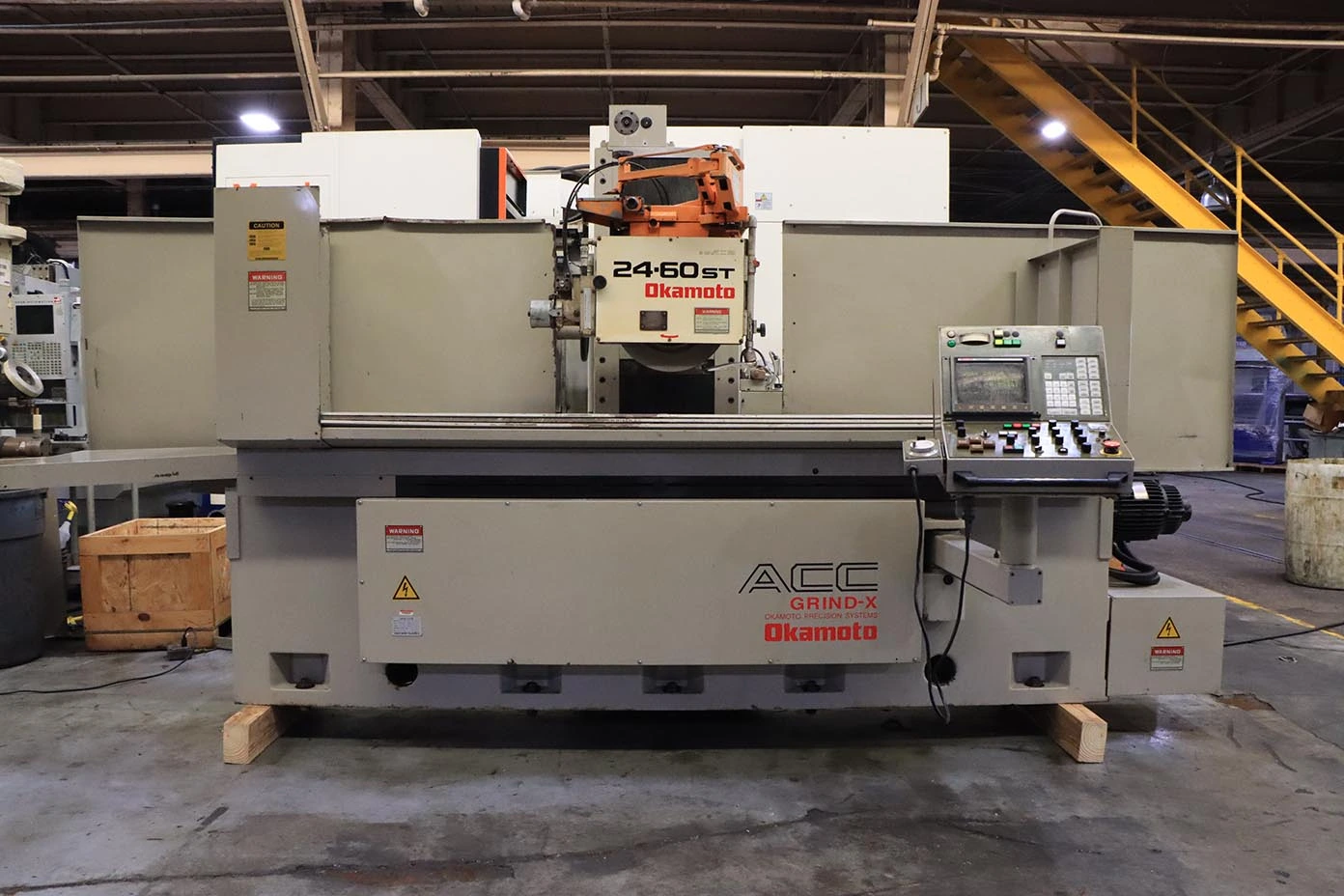

USED 2000 Okamoto ACC 24-60ST, 2000, 3X AUTO FEEDS, PROG. AUTO IDF,

24" Width 60" Length Okamoto ACC 24-60ST, 2000, 3X AUTO FEEDS, PROG. AUTO IDF, SURFACE GRINDER, ALL 3-AXES ARE BALLSCREW (NO HYDRAULICS), EMC,

    24" x 60" OKAMOTO (MADE IN JAPAN)

      COLUMN TYPE SURFACE GRINDER

   WITHFANUC 21-G PROGRAMMABLE CONTROL

     ** ALL THREE AXES ARE DRIVEN BY

       SERVO MOTORS & BALLSCREWS **

MODEL: ACC-2460ST    S/N: 40017     NEW: 2000

SPECIFICATIONS:

MAX GRINDING SURFACE ............ 24" x 61"

MAX CAPACITY UNDER 20" WHEEL .... 23.6"

STANDARD CHUCK SIZE ............. 24" x 60" x 4.3"

MAX TABLE LOAD .................. 3.300 LBS

LONGITUDINAL FEED:

MAX TRAVEL ...................... 65"

FEED RATE ....................... 6.6 - 82FT/MIN.

CROSSFEED:

MAX TRAVEL ...................... 26"

AUTO FEED TRAVEL ................ 26"

RAPID FEED RATE ................. 16.5 FT/MIN.

MANUAL FEED:

HAND FEED/REV(X1/X5/X20) ...... 0.01"/0.05"/0.2"

HAND WHEEL GRAD(X1/X5/X20) ... 0.0001/0.0005"/0.002"

AUTO FEED:

ROUGH INFEED .................... 0 - 0.0025"

FINE INFEED ..................... 0 - 0.0005"

FINE GRINDING ALLOWANCE ......... 0 - 0.002"

AIR-CUT FEED RATE(ROUGH/FINE) ... 0 - 999,99999

NUMBER OF SPARK OUTS ............ 0 - 5

GRINDING WHEEL INFO:

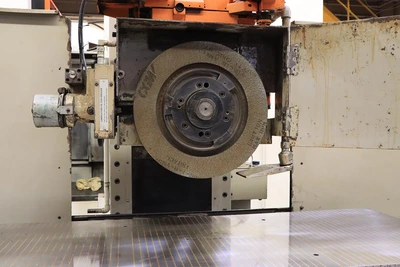

GRINDING WHEEL (D x W x B) ...... 20" x 3" x 8"

SPINDLE SPEED ................... 1,100 RPM

MOTORS:

WHEEL SPINDLE ................... 20 HP

HYD OIL PUMP FOR DRESSER ........ 0.5/2HP

VERT FEED(AC SERVO MOTOR) ....... 1.2 HP

CROSSFEED(AC SERVO MOTOR) ....... 1.2HP

DIMENSIONS & WEIGHT:

FLOOR SPACE (W x D x H) ...... 214" x 107" x 99"

APPROXIMATE WEIGHT .............. 23,100 LBS.

EQUIPPED WITH:

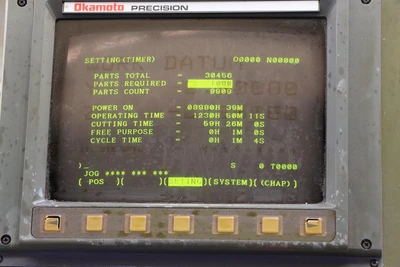

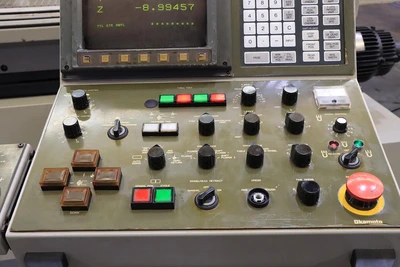

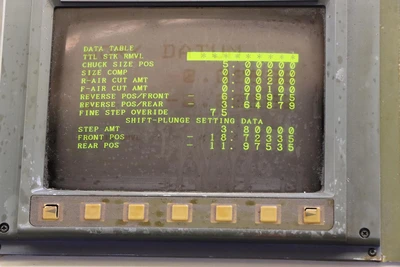

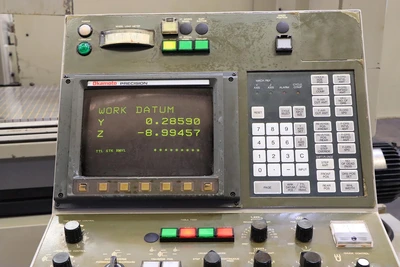

FANUC 21-G MDI CONTROL

ALL THREE AXES ARE DRIVEN BY SERVO NOTORS & BALLSCREWS

RAPID APPROACH & RETRACT TO START POSITION

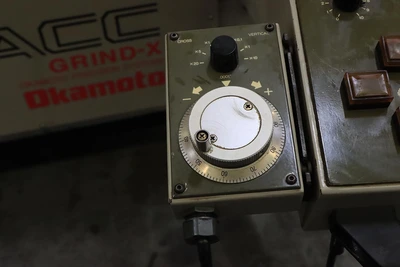

VERTICAL & CROSS MANUAL PULSE GENERATOR

RAPID FEED UP& DOWN

 ROUGH& FINE GRINDING CYCLES

 TRAVERSE,PLUNGE,SHIFT PLUNGE GRINDING CYCLES

 BALL SCREWS ON ALL THREE AXES

23- 5/8" (500mm) x 59- 3/16" (800mm) ELECTRO MAGNETIC

  CHUCK & CHUCK CONTROLLER

OVER-THE-WHEEL FORM DRESSER, MANUAL TYPE

LARGE COOLANT SYSTEM WITH PAPER FILTRATION

MACHINE IS PRESENTLY WIRED FOR 3/60/480 VOLTS

** EXCELLENT CONDITION & APPEARANCE  **

     ** - ORIGINAL PAINT **

** LOCATED IN WISCONSIN, SPECIAL "LOWER"

  "PRE-REMOVAL" PRICE, IF TAKEN BEFORE

  WE MOVE IT TO OUR HARRISON, NJ WAREHOUSE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
