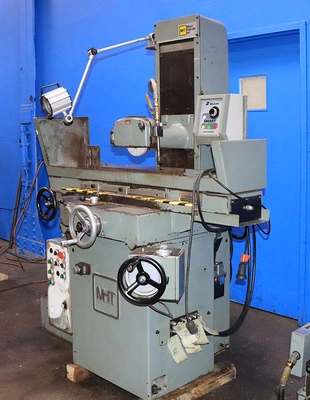

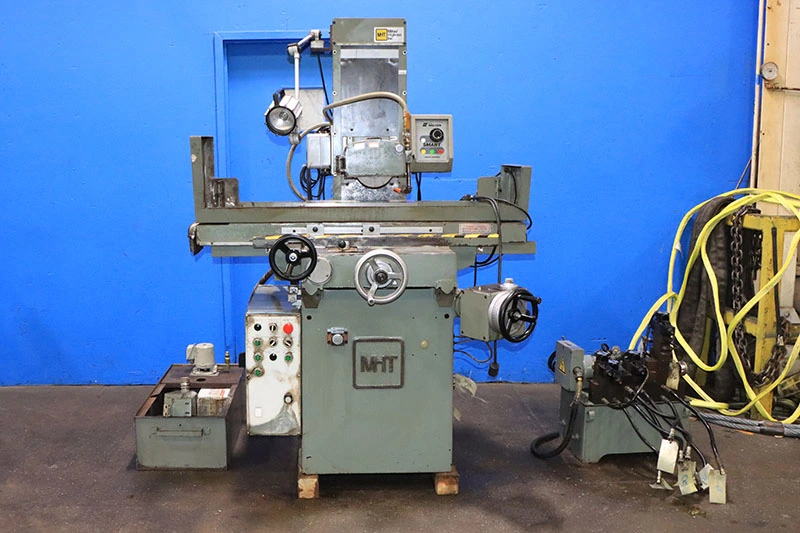

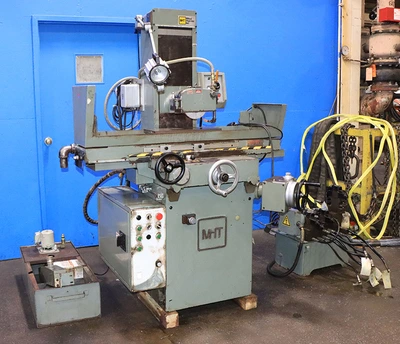

8" Width 18" Length MITSUI MSG-250H2AH, 1990, AUTO IDF, 3X AUTO FEEDS, EMC SURFACE GRINDER, COOLANT
8" X 18" MITSUI "SUPER-PRECISION
- MADE IN JAPAN -
"HIGH COLUMN" HYDRAULIC SURFACE GRINDER
WITH AUTO INCREMENTAL DOWNFEED
MODEL: MSG250H-2AH S/N: 90083532 NEW: 1990
WORKING SURFACE OF TABLE ............... 8" X 19"
MAXIMUM SURFACE GROUND ................. 9-1/2" x 20"
MAXIMUM DISTANCE BETWEEN TABLE
SURFACE AND SPINDLE CENTER ............. 22-1/2"
RANGE:
LONGITUDINAL ........................... 20"
CROSS (AUTOMATIC)....................... 9-1/2"
CROSS (MANUAL).......................... 10"
VERTICAL ............................... 16"
INF. VARIABLE LONGITUDINAL FEEDS ....... 5 - 68 FPM
AUTO CROSS FEED TO TABLE PER STROKE .... 0.02" - 0.05" IPM
AUTO VERT. FEED INCREMENTS, 10 STEPS ... 0.0001" - .001"
RAPID CROSS FEED RATE .................. 2 - 17 IPM

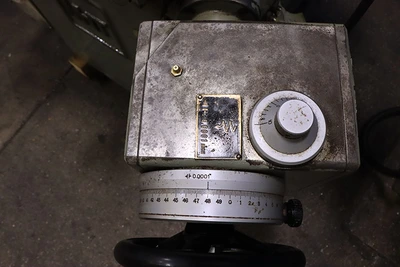

ELEVATING HANDWHEEL GRADUATIONS ........ 0.0001"
CROSS FEED HANDWHEEL GRADUATION ........ 0.001"
CROSS FEED VERNIER ..................... 0.0001"
APPROX. MACHINE WEIGHT ................. 3,490 LBS
MACHINE FEATURES:
AUTOMATIC INCREMENTAL DOWNFEED OF GRINDING WHEEL,

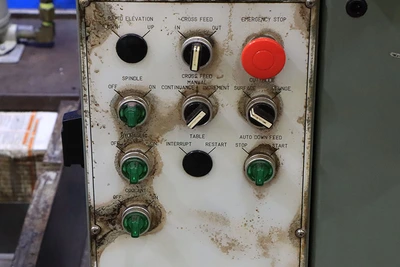

- SELECTOR SWITCH FOR SURFACE OR PLUNGE MODES
HYDRAULIC LONGITUDINAL & POWER CROSS FEEDS
ROLLER BEARING TABLE
HARDENED & GROUND WAYS (REMOVEABLE) ON TABLE,
CARRIAGE/SADDLE & COLUMN
AUTOMATIC ONE SHOT LUBRICATION SYSTEM
8" x 1/2" x 1- 1/4" GRINDING WHEEL
2 H.P./3/60/460 VOLT SUPER-PRECISION SPINDLE DRIVE
EQUIPPED WITH:

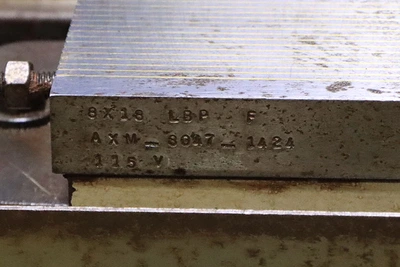

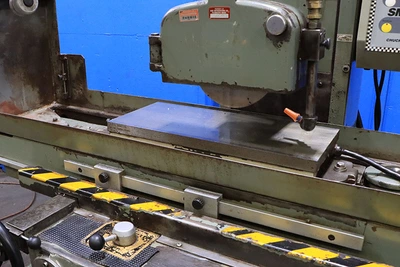

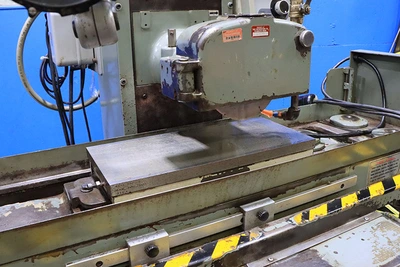

8" x 18" O.S. WALKER FINE-DIVISION "LBP"
ELECTRO MAGNETIC CHUCK

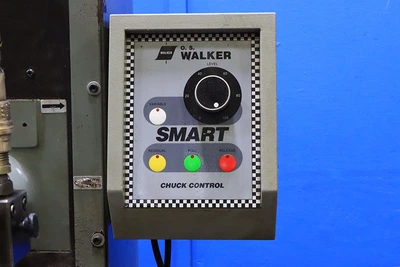

O.S. WALKER "SMART" SERIES VARIABLE HOLD NEUTROFIER
WORK LIGHT

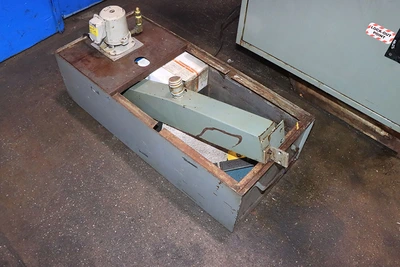

COOLANT SYSTEM WITH GUARDING, HOSES, TANK & PUMP

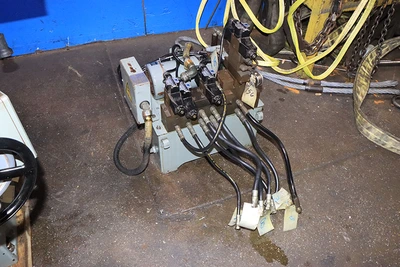

EXTERNAL HYDRAULIC SYSTEM, TANK, PUMP, VALVING, ETC.
MACHINE IS WIRED FOR 3/60/220 VOLT ELECTRICS
Link to video: https://youtu.be/a2XdZeQI3hM?si=aFSNiHw3VewMKyEt
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
** ORIGINAL PAINT - VERY GOOD CONDITION **
FOR MORE INFORMATION: Call Andy at 973-497-7600
