USED 1996 Tos Varsdorf W100A Rotary Tbl, #50PDB, Facing Head

4" Spindle 63" X Axis Tos Varsdorf W100A Rotary Tbl, #50PDB, Facing Head HORIZONTAL BORING MILL, Rotary Table, Facing Head, #50 PDB, 5-Axis DRO's,

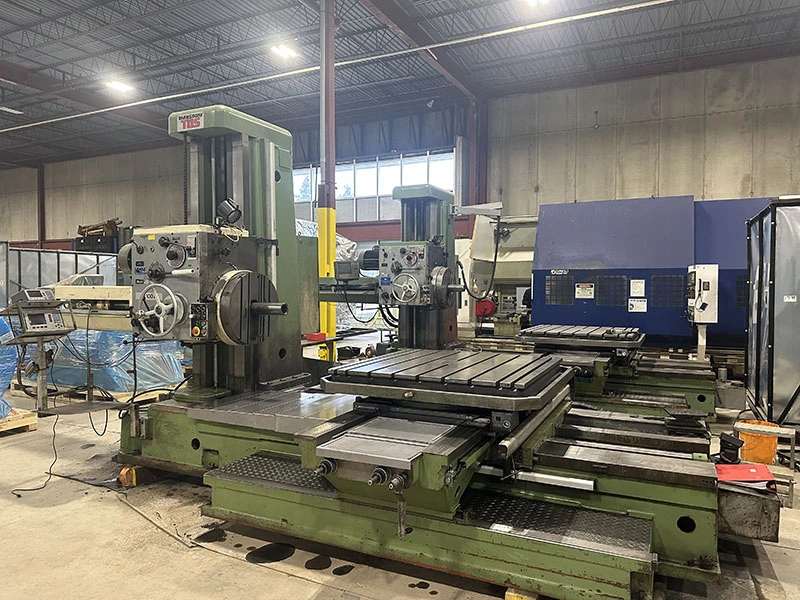

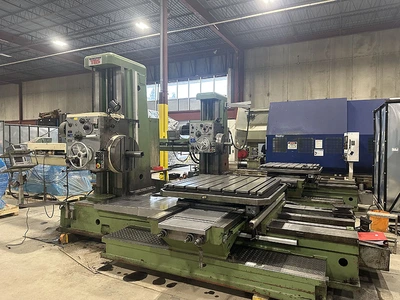

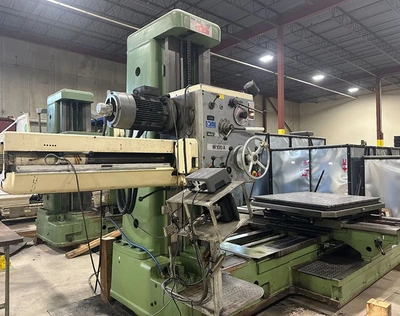

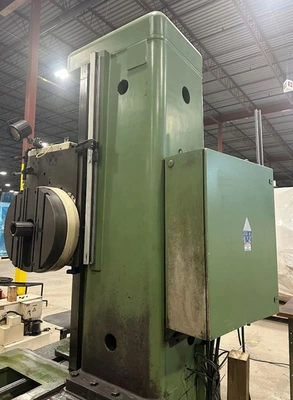

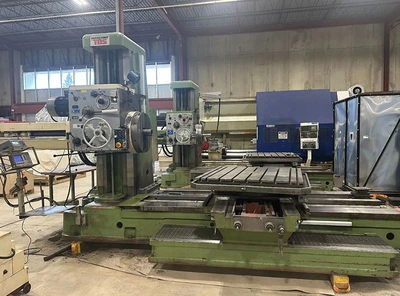

4" TOS TABLE TYPE HORIZONTAL BORING MILL

MODEL: MODEL W100A, S/N: 3908, NEW: 1996

SPECIFICATIONS:

DIAMETER OF SPINDLE ............... 4"

TAPER OF SPINDLE .................. #50 STD.

SPINDLE TRAVEL .................... 35-1/2"

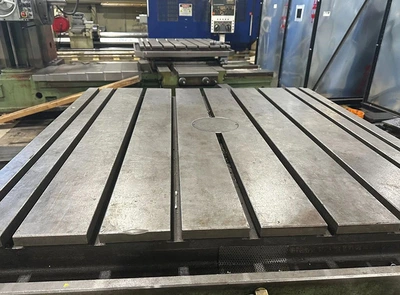

WORKING SURFACE TABLE ............. 49" X 49"

CROSS TABLE TRAVEL ................ 63"

MAX DISTANCE SPINDLE TO TABLE ..... 44"

SADDLE TRAVEL ..................... 49"

SPINDLE SPEEDS (23) ............... 7.1 TO 1120 RPM

FACEPLATE SPEEDS (16) ............. 7.1 TO 224 RPM

BORING FEED RANGES (32) ........... .0008 TO .47 IPR

MILLING FEEDS (18) ................ .7 TO 35.4 IPM

ROTARY TABLE FEEDS (18) ........... .98 TO 55 IPM

RAPID TRAVERSE RATE ............... 110 IPM

MAXIMUM WEIGHT OF WORK PIECE ...... 6,600 LBS.

WEIGHT APPROXIMATELY .............. 35,000 LBS.

EQUIPPED WITH:

- POWER DRAW BAR

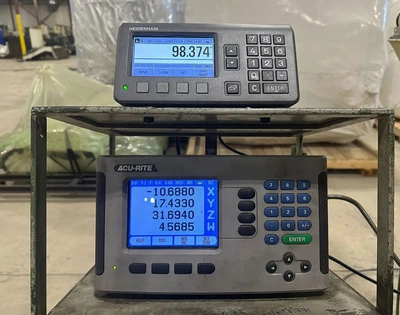

- ACU-RITE FOUR AXIS DIGITAL READOUT

- NEW HEIDENHAIN DIGITAL DISPLAY & ENCODER FOR ROTARY AXIS

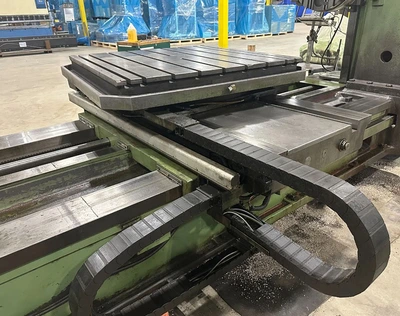

- ROTARY TABLE

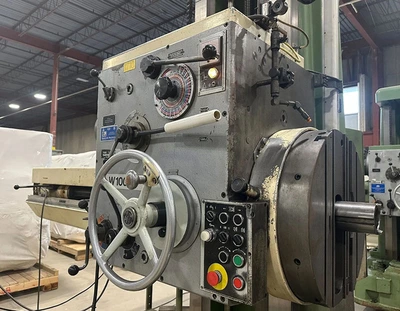

- 23-1/2" BUILT-IN CONTINOUS FEED FACING HEAD

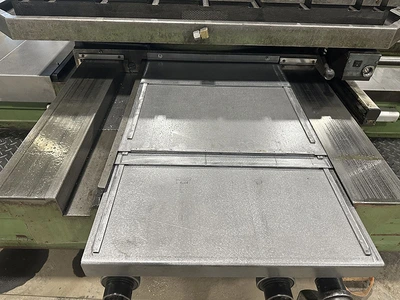

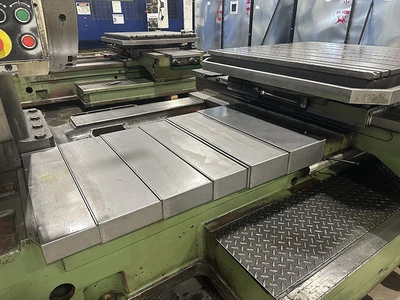

- NEW X & Z WAY COVERS

- INCH/METRIC THREADING CAPABILITY

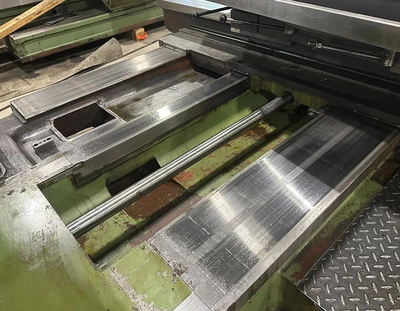

- HARDENED AND GROUND BED AND TABLE WAYS

- 15 HORSE POWER MAIN MOTOR

FOR MORE INFORMATION: Call David at 973-497-7570
