USED 2007 Sharp LMV Var-Speed, R-8,

42" Table 3HP Spindle Sharp LMV Var-Speed, R-8, VERTICAL MILL, Vari-Speed, R-8, Fagor 3-Axis DRO,Servo Pwr Tbl Fd

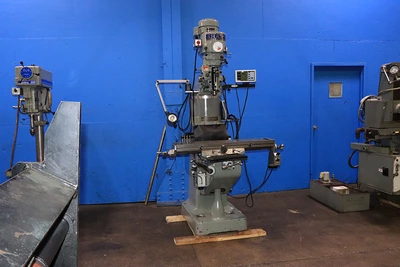

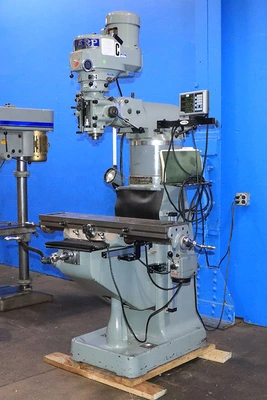

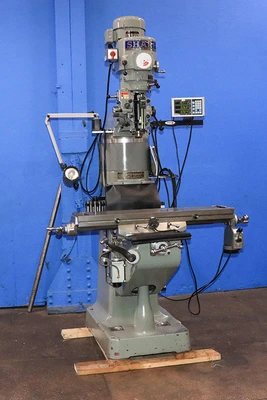

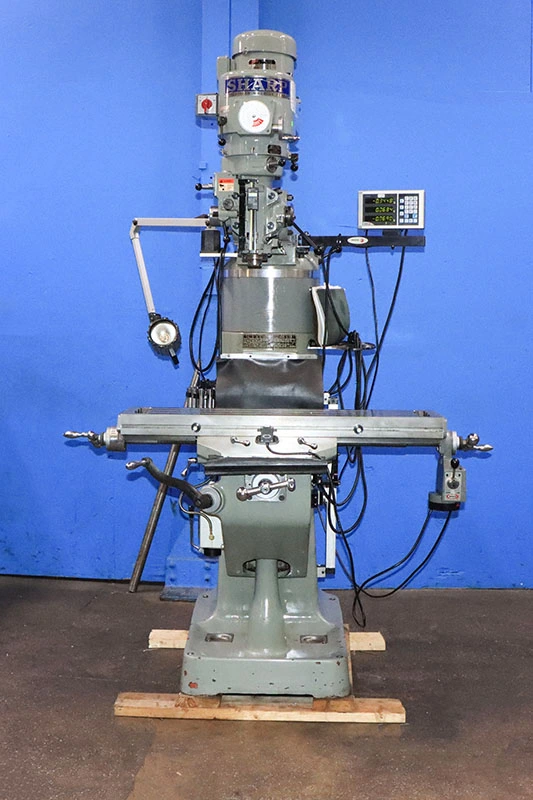

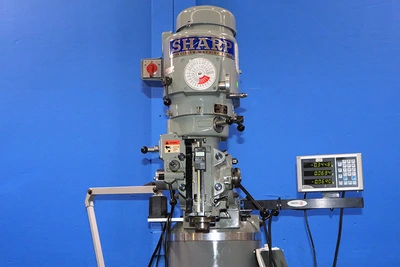

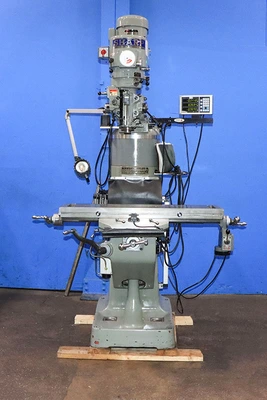

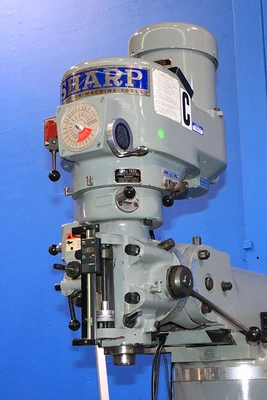

SHARP VARI-SPEED MILLING MACHINE

MODEL: LMV, S/N: 60329709, MFG: 2007

SPECIFICATIONS:

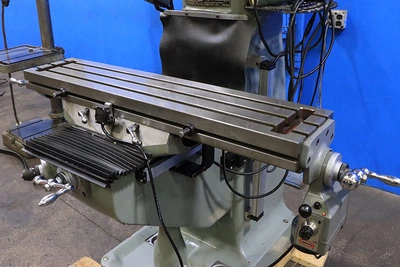

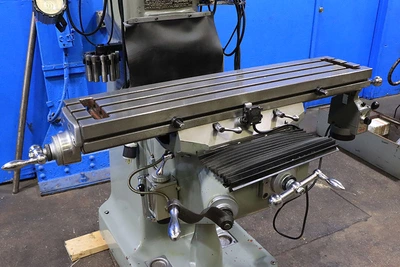

WORKING AREA OF TABLE ................ 9" x 42"

TABLE LONGITUDINAL TRAVEL ............ 30"

TABLE CROSS TRAVEL ................... 12"

VERTICAL KNEE TRAVEL ................. 16"

RAM TRAVEL ........................... 12"

SPINDLE QUILL TRAVEL ................. 5"

SPINDLE TAPER ........................ R-8

SPINDLE SPEED RANGE .................. 60 - 4500 RPM

SPINDLE FEEDS (31 PER REV OF SPINDLE). .0015, .003, .006

HEAD SWIVEL .......................... 360 DEGREES

HEAD TILT (RIGHT TO LEFT) ............ 45 DEGREES

HEAD TILT (UP AND DOWN) .............. 45 DEGREES

APPROX WEIGHT ........................ 2,400 LBS

EQUIPPED WITH:

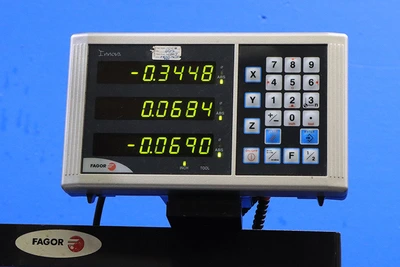

FAGOR THREE AXIS DIGITAL READOUT

   FOR TABLE LONGITUDINAL, CROSS & KNEE TRAVELS

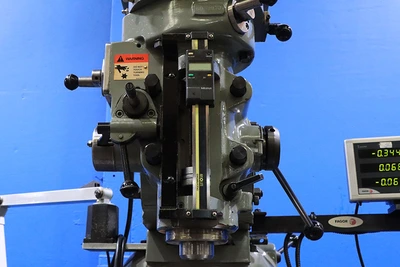

MITUTOYO DIGITAL READOUT FOR QUILL TRAVEL

SERVO POWER FEED FOR LONGITUDINAL TABLE TRAVEL

8" RISER BLOCK

CHROME WAYS

HALOGEN WORK LIGHT

ONE SHOT LUBRICATION

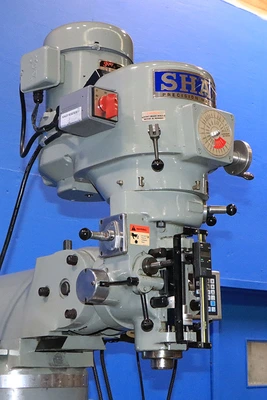

3 HORSE POWER SPINDLE MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

CONDITION:  ***  EXCELLENT  ***

FOR MORE INFORMATION: Call David at 973-497-7570
