| Weight | 5,200 LBS (APPROX.) | 5,200 LBS (APPROX.) |

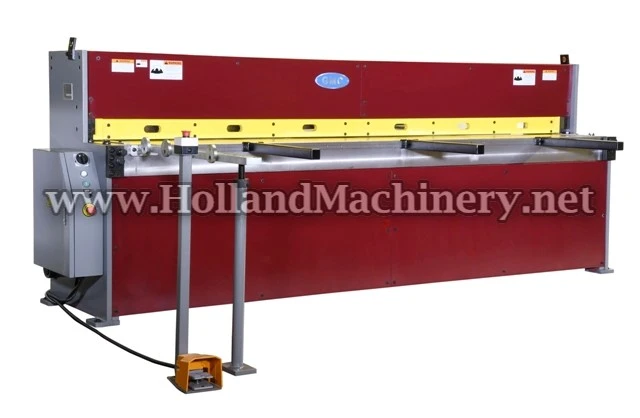

NEW "GMC" HYDRAULICALLY OPERATED SHEAR
MODEL HS-1014MD
CAPACITY 10' x 14 ga (MILD STEEL)
CAPACITY 10' x 18 ga (STAINLESS STEEL)
BLADE LENGTH 120"
SPRING HOLD DOWNS
STROKES PER MINUTE ADJUSTABLE 16-20
WORKTABLE HEIGHT 30-1/2"
FRONT SUPPORT ARM 24"
REAR OPERATED MANUAL BACKGUAGE 26"
BLADE RAKE ANGLE 1.5°
OIL TANK CAPACITY 20 GALLONS
MAIN MOTOR 5.5 HP/220-440/3/60
WEIGHT 5,200 LBS (APPROX.)
DIMENSIONS 140" x 36" x 52"
EQUIPPED WITH:
60†SQUARING ARM
(2) 24" FRONT SUPPORT ARMS
WORK LIGHT/SHADOW LINE
FINGER GUARD
REMOTE FOOT PEDAL
OPTIONAL EQUIPMENT:
-SAFETY FENCE FOR ENCLOSURE OF THE BACK SIDE OF THE MACHINE
-SPECIAL BLADE SET FOR STAINLESS STEEL
