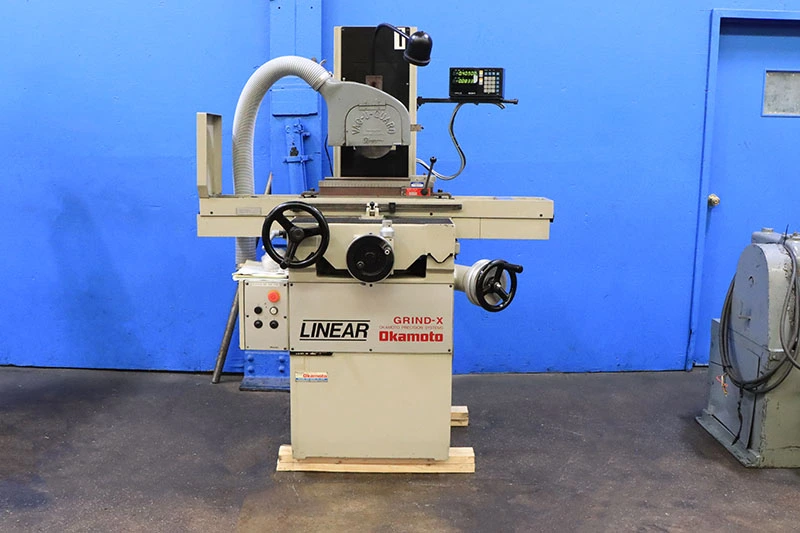

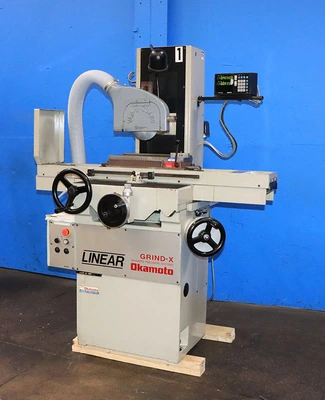

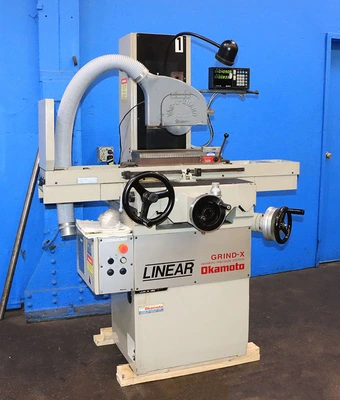

USED 2013 Okamoto Linear 618B, 2013, SONY 2X DRO (.00005" Res.),
Overview
Description
6" Width 18" Length Okamoto Linear 618B, 2013, SONY 2X DRO (.00005" Res.), SURFACE GRINDER, FF Knob for Crossfeed, PMC
Specifications
6" X 18" OKAMOTO "HIGH-PRECISION"
HANDFEED SURFACE GRINDER
WITH ROLLER BEARING TABLE,
FEATURING SONY LG-10 HIGH ACCURACY DRO,
WITH DISPLAY RES. OF .00005"

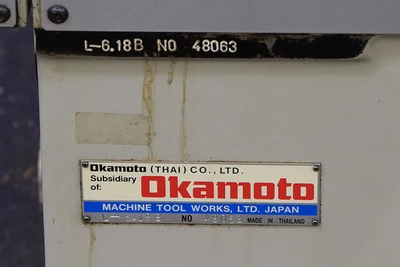

MODEL: L-618B S/N: 48063 NEW: 2013
NOMINAL GRINDING CAPACITY ........... 6" x 18"
TABLE TO UNDERSIDE,
OF 8" GRINDING WHEEL ............... 14.27"
MAX. LONGITUNAL TABLE TRAVEL ........ 20.87"
MAX. CROSS TRAVEL ................... 8.27"
MOVEMENT PER HANDWHEEL REVOLUTION:
TABLE .............................. 5.12"
SADDLE ............................. 0.1""
SADDLE .............................. 0.05"
HANDWHEEL GRADUATION................. 0.0001"
SPINDLE MOTOR ....................... 2 H.P.
GRINDING WHEEL SPEED ................ 3450 RPM
WHEEL SIZE .................... 8" x 1/2" x 1- 1/4"
APPROX. DIMS. FOR OPERATION ... 76.5" x 55.3"D x 68"H
APPROX. MACHINE WEIGHT .............. 2,070 LBS.
EQUIPPED WITH:

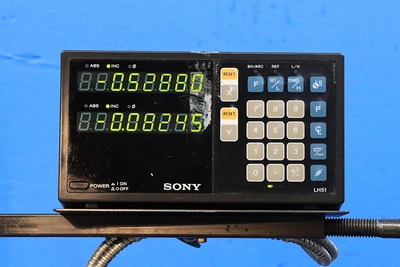

"SONY" "LH-51" 2-AXIS DIGITAL READOUT DISPLAY,
DISPLAY READS TO 0.00005" (50 MILLIONTHS OF AN INCH)

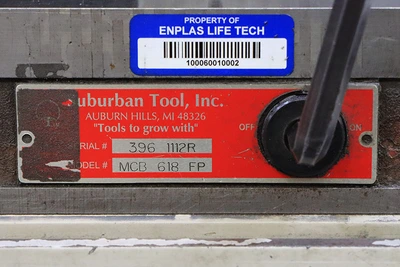

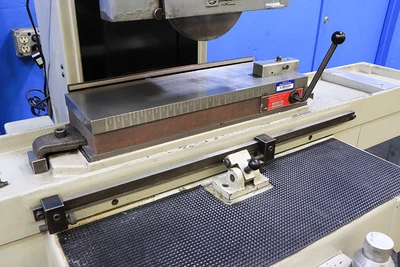

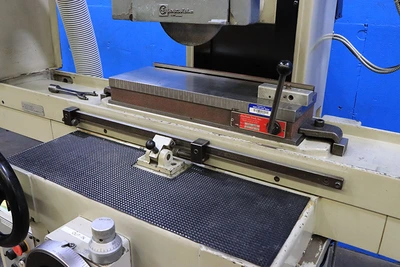

6" X 18 "SUBURBAN "MCB 618 FP" FINE-DIVISION
PERMANENT MAGNETIC CHUCK
DRY GRINDING WITH "VAC-U-GUARD" WHEEL COVER,
WITH DUST INLET
RECIRCULATING AUTOMATIC LUBRICATION SYSTEM

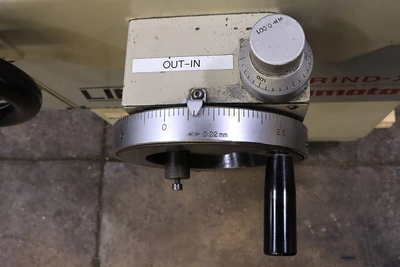

THIS MACHINE HAS THE OPTIONAL FINE FEED KNOB,
FOR THE CROSS FEED, GRADUATED TO READ TO 0.0001"
WORK LIGHT
WIRED PRESENTLY FOR 220 VOLTS
MACHINE FEATURES:
MEEHANITE CAST IRON, HEAVY DUTY CONSTRUCTION
SMOOTH TABLE MOVEMENT THROUGH RELIABLE BELT DRIVE
TABLE GLIDES ON LINEAR BALL BEARINGS
RECIRCULATING LUBRICATION SYSTEM
2 H.P. DIRECT DRIVE SPINDLE, 3/60/220-230-440-460 VOLTS
** ORIGINAL PAINT - EXCEPTIONAL CONDITION & APPEARANCE **
** QUIET SPINDLE - BEAUTIFUL **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
FOR MORE INFORMATION: Call Andy at 973-497-7600
