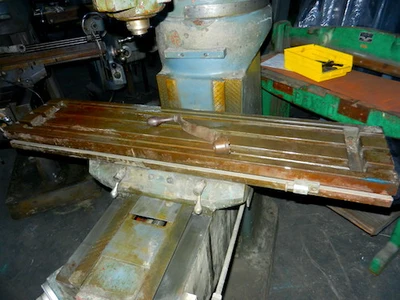

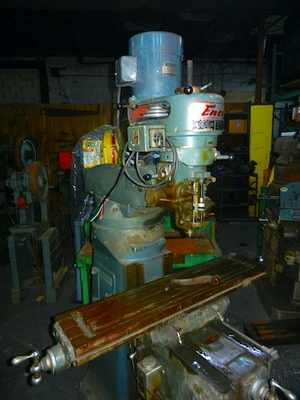

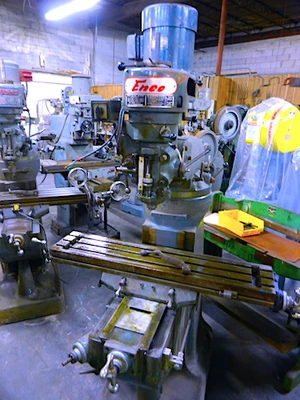

ENCO 9" x 42" VERTICAL TURRET MILL

USED "ENCO" VERTICAL TURRET MILL
TABLE SIZE 9" x 42"
TABLE TRAVEL (X-AXIS) 30"
SADDLE TRAVEL (Y-AXIS) 12"
QUILL TRAVEL 5"
KNEE TRAVEL (Z-AXIS) 16"
RAM TRAVEL 12"
THROAT DISTANCE MIN 6-3/4" TO MAX 18-3/8"
TABLE TO SPINDLE NOSE MIN 2-1/2" TO MAX 18-1/4"
HEAD TILTS 90° LEFT OR RIGHT
HEAD TILTS 45° FRONT OR BACK
SPINDLE TAPER R-8
SPINDLE MOTOR 2 HP/110-220/1/60
SPINDLE SPEED (8) FROM 80 TO 2,720 R.P.M.
SPINDLE POWER FEED .0015", .003" & .006"
