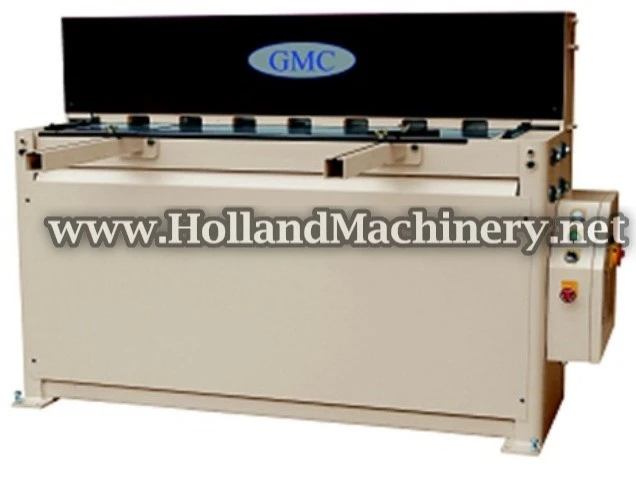

GMC 4' x 12ga HYDRAULIC SHEAR

NEW "GMC" HYDRAULICALLY OPERATED SHEAR
MODEL: HS-0412MD
CAPACITY 4' x 12 GAUGE (MILD STEEL)
CAPACITY 4' x 16 GAUGE (STAINLESS STEEL)
BLADE LENGTH 52"
SPRING HOLD DOWNS
STROKES PER MINUTE ADJUSTABLE 16-20
THROAT DEPTH 16"
WORKTABLE HEIGHT 30-1/2"
FRONT SUPPORT ARM 24"
REAR OPERATED MANUAL BACKGAUAGE 26"
BLADE RAKE ANGLE 1.5°
OIL TANK CAPACITY 15 GALLONS
MAIN MOTOR 3 HP/220-440/3/60
WEIGHT 1,950 LBS (APPROX.)
DIMENSIONS 68" x 34" x 52"

EQUIPPED WITH:
60" SQUARING ARM
(2) 24" FRONT SUPPORT ARMS,
WORK LIGHT
FINGER GUARD
REMOTE FOOT PEDAL

OPTIONAL EQUIPMENT:
-SAFETY FENCE FOR ENCLOSURE OF THE BACK SIDE OF THE MACHINE
-SPECIAL BLADE SET FOR STAINLESS STEEL
