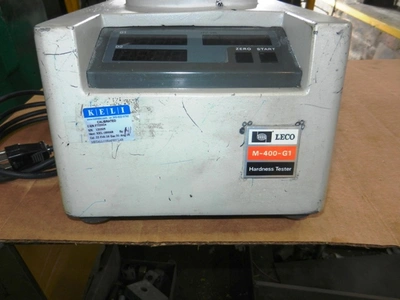

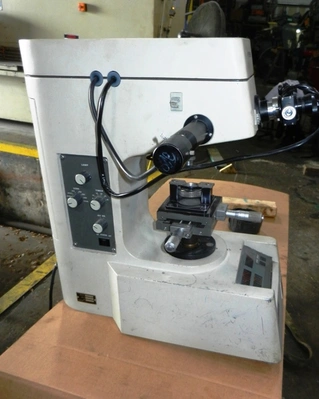

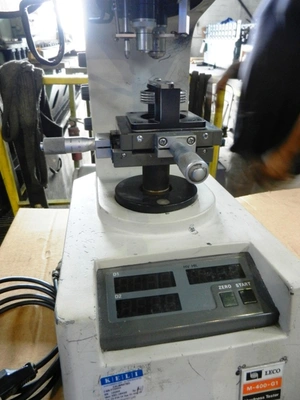

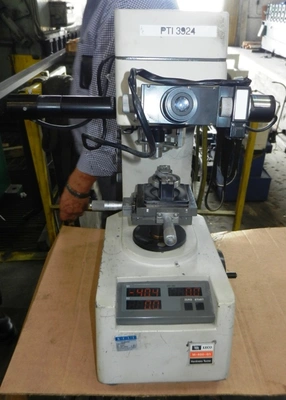

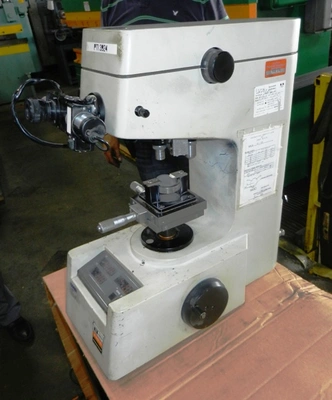

USED "LECO" HARDNESS TESTER
M-400 - G1
SERIAL #120305
INFORMATION FOUND ON THE WEB:
Test Load: 10, 25, 50, 100, 200, 300, 500, 1000
Mag. Of Microscope: Obj. Lens X10, Eyepiece X10 (Observation)
Obj. Lens X55, Eyepiece X10 (Measurement)
Measuring Eyepiece: 0.1 micron/division
Load Duration Time: 5, 10, 15, 20, 25, 30 seconds
Specimen Height: 60 MM (max)
Specimen X-Y Stage: Area - 100 MM x 100 MM
Range Of Movement - 25 MM in X and Y
Minimum Divisions - 0.01 MM
Overall Size: 16" wide x 20" deep x 21" high (approx.)
Power Supply: AC100/115/200/220/240V, 50/60 Hz
