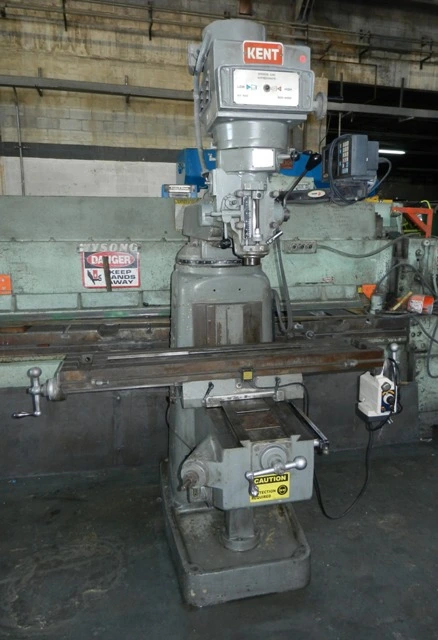

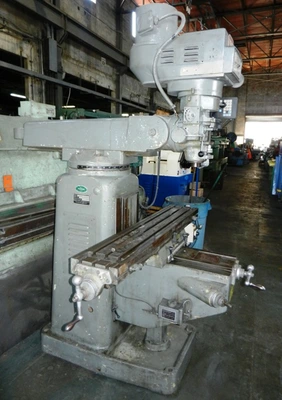

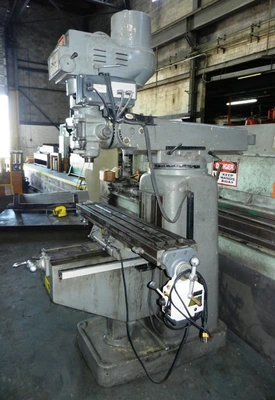

KENT 9" x 48" MILLING MACHINE

USED "KENT" VERTICAL MILLING MACHINE
MODELKTM 380V
SERIAL # 801156-37
YEAR OF MANUF. 1981
TABLE SIZE 9" x 48"
SPINDLE DIAMETER 3-3/8"
SPINDLE TAPER R-8
LONG TRAVEL 30"
CROSS TRAVEL 15"
VERTICAL 16" (KNEE)
SPINDLE TRAVEL 5"
RAM TRAVEL 12"
DISTANCE FROM CENTER OF SPINDLE TO BODY MIN. 6.75"
DISTANCE FROM CENTER OF SPINDLE TO BODY MAX 18.75"
MOTOR 2 HP/230-460/3/60
SPEEDS INFINITELY VARIABLE FROM 60 TO 4,200 R.P.M.
SPINDLE POWER FEED 0.0015", 0.0028" & 0.0049"
HEAD TILTS 90° LEFT OR RIGHT
HEAD TILTS 45° FRONT OR BACK
WEIGHT 3,000 LBS. (APPROX.)
EQUIPPED WITH:

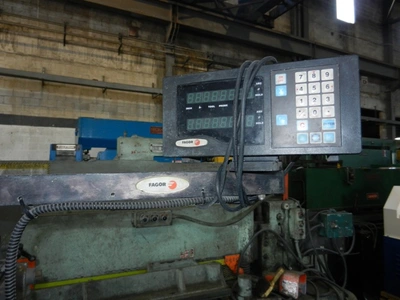

2 AXIS "FAGOR" DIGITAL READ-OUT
CENTRAL LUBRICATION
