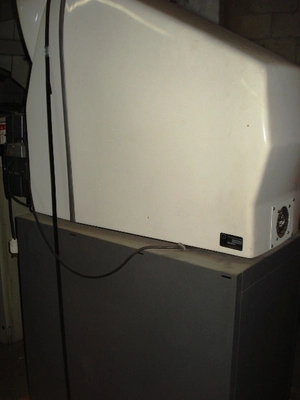

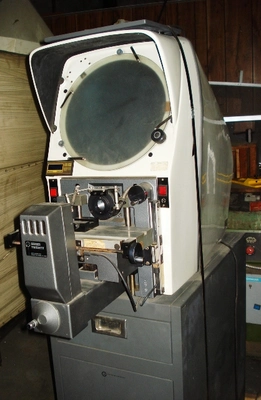

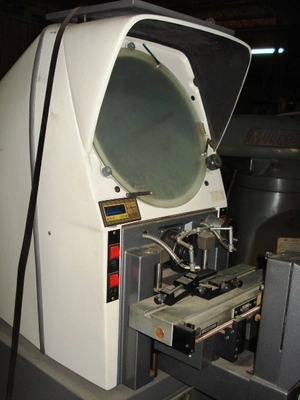

USED "GAGE MASTER" HORIZONTAL PROJECTION BENCH
MODEL OPTICAL COMPARATOR WITH 2-AXIS DIGITAL READOUT DISPLAY

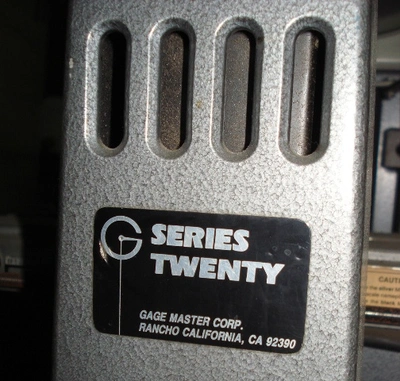

SERIES TWENTY

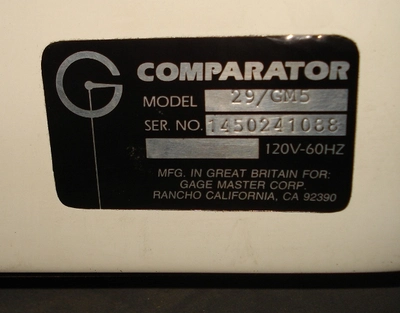

MODEL: 29/GM5
S/N: 1450241088
SCREEN DIAMETER 14"
TABLE SIZE 14-3/4" X 4"
WEIGHT CAPACITY ON TABLE 110 LBS.
HORIZONTAL TRAVEL 7"
VERTICAL TRAVEL 4"
FOCUS 2"
HELIX ANGLE ± 15 DEG.
APPROX MACHINE WEIGHT 400 LBS.
EQUIPPED WITH:
2-AXIS DIGITAL READOUT DISPLAY HIGH POWER
TUNGSTEN ARC PROFILE ILLUMINATION SURFACE ILLUMINATION 10X LENS
MOUNTED ON A CABINET WITH CASTER & VISE
