USED ENCO 414-2290, SERIAL # 131635, YEAR OF MANUFACTURE 2015

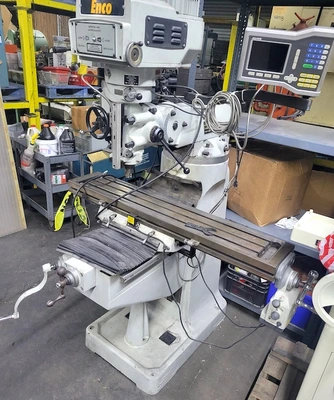

USED "ENCO" VARIABLE SPEED VERTICAL MILLING MACHINE
MODEL 414-2290, SERIAL # 131635, YEAR OF MANUFACTURE 2015
TABLE SIZE 9" x 49"
SPINDLE DIAMETER 3-3/8"
SPINDLE TAPER R-8
LONG TRAVEL 34"
CROSS TRAVEL 12"
VERTICAL 16" (KNEE)
SPINDLE TRAVEL 5"
RAM TRAVEL 12"
DISTANCE FROM CENTER OF SPINDLE TO TABLE MIN. 6.75"
DISTANCE FROM CENTER OF SPINDLE TO TABLE MAX. 18.75"
MOTOR 3HP/ 230-440/ 3/ 60, WIRED 220 VOLTS
SPEEDS INFINITELY VARIABLE FROM 60 TO 4,200 R.P.M.
SPINDLE POWER FEED .0015", .003", .006"
HEAD TILTS 90° LEFT OR RIGHT & HEAD TITLS 45° FRONT OR BACK

EQUIPPED WITH:
3 AXIS ACCU-RITE DIGITAL READOUT
LONGITUDINAL POWERFEED
MISC. COLLETS
WORK LIGHT
CENTRAL LUBRICATION
