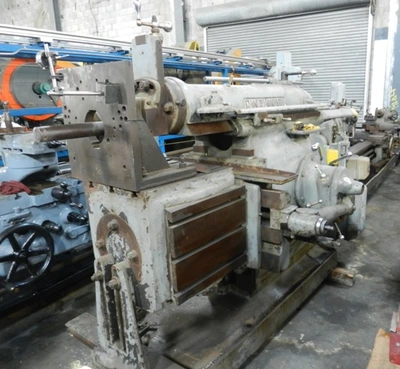

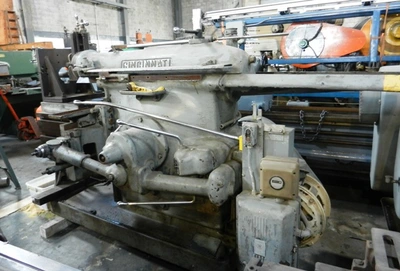

USED CINCINNATI 24 HEAVY DUTY

USED "CINCINNATI" UNIVERSAL HEAVY DUTY SHAPER
MODEL 24 HEAVY DUTY
SERIAL # 12982
STROKES PER MINUTE (8) 9 TO 119
STROKE LENGTH 24-3/4"
TABLE SIZE 16" x 24"
TABLE TO RAM 2-1/2" TO 17-1/2"
HORIZONTAL TRAVEL 30-1/2"
VERTICAL TRAVEL 13"
CROSSFEED (11) .010 TO .170
TOOL HEAD TRAVEL 6-1/2"
TOOL SIZE 1" x 2"
POWER RAPID TRAVERSE
POWER DOWNFEED (6) 0 TO .036"
MOTOR 10 H.P./220-440/3PH/60cy
WEIGHT 7,500 LBS. (APPROX.)
DIMENSIONS 92" x 54" x 68"

EQUIPPED WITH: ELECTRICAL CONTROLS & FLYWHEEL GUARDS
