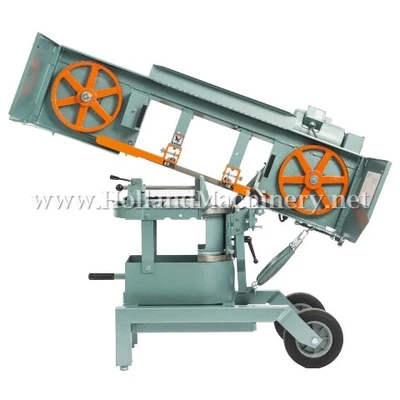

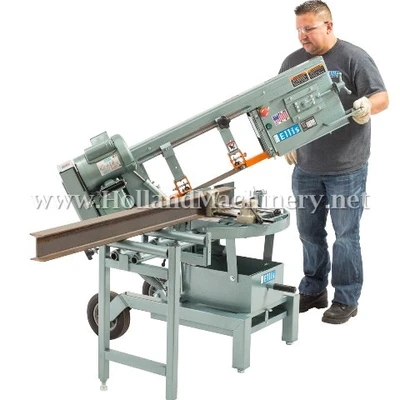

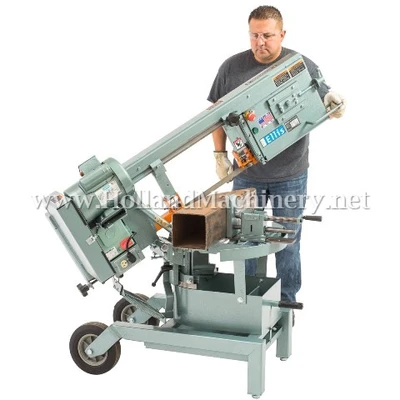

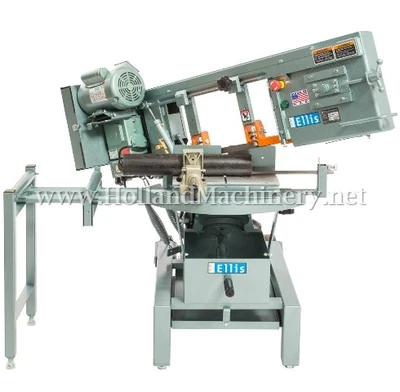

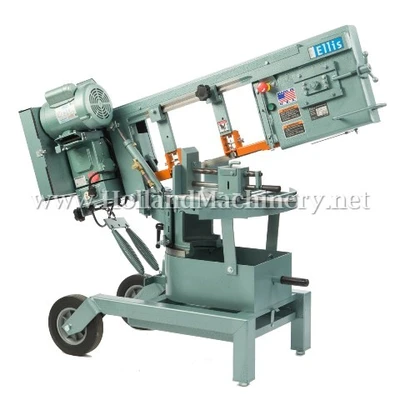

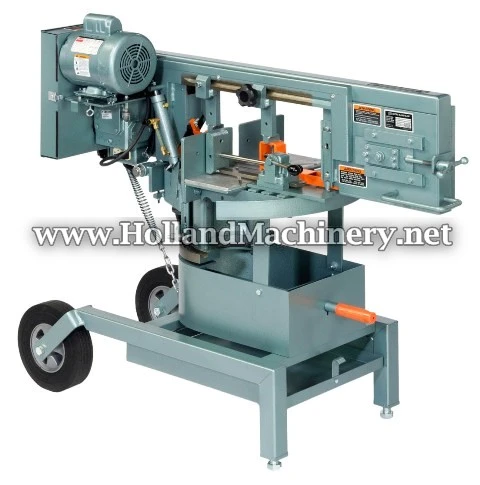

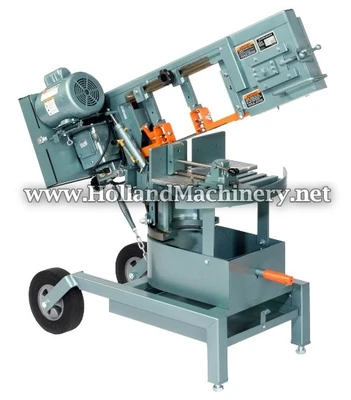

ELLIS 1500 MITER BAND SAW

NEW "ELLIS" 1500 MITER BAND SAW
CAPACITY (90° & 45°)
10" ROUND AT 90°
8" PIPE AT 90°
11" FLAT AT 90°
6-7/8" ROUND AT 45°
6" PIPE AT 45°
7-1/4" FLAT AT 45°
BLADE SPEEDS (3) 65-115-205 FPM
BLADE SIZE 9'6" x 3/4"
FEED CONTROL HYDRAULIC ADJUSTING
VISE QUICK ADJUSTING CAMLOCK
SHUT OFF AUTOMATIC
MOTOR-STANDARD 3/4 HP / 110/220V/ 1 PHASE
PORTABLE 10" WHEELS-STANDARD
WEIGHT 435 LBS.(APPROX)
TABLE HEIGHT 27"
DIMENSIONS 55" x 24-3/4" x 45"

STANDARD: SEALED OIL BATH WORM GEAR, REMOVABLE CHIP TRAY
-Head of band saw moves left or right for angle cutting
-Built-in Protractor for fast and accurate selection of angles

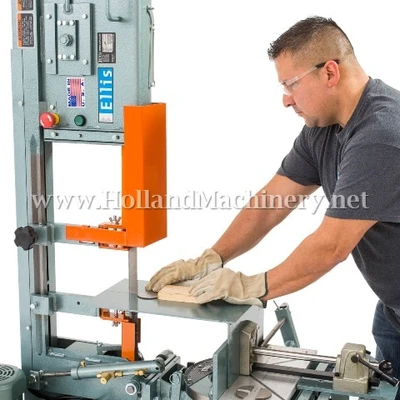

-One-step conversion from horizontal to vertical band saw
-Stock remains in one position for all cuts
-Miters 45° both ways

ASK ABOUT OPTIONAL EQUIPMENT
OPTIONS IN PICTURES
