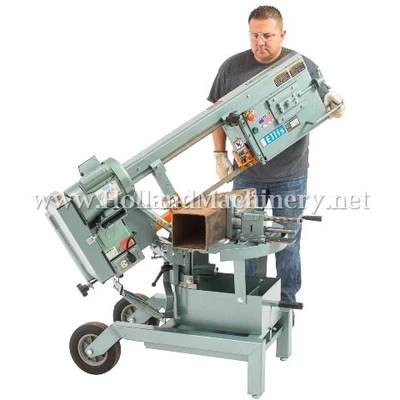

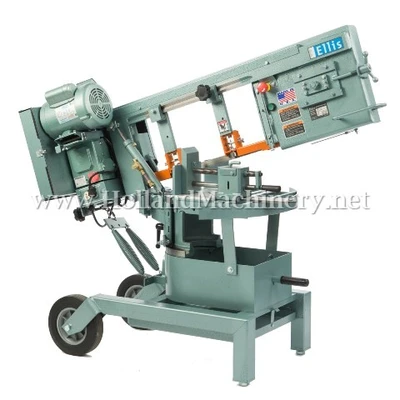

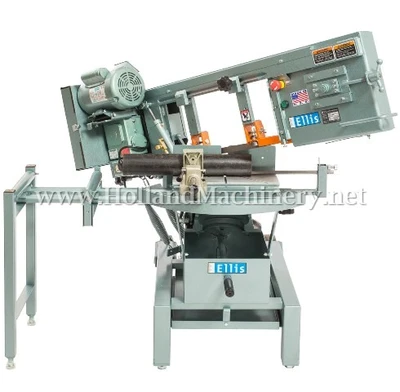

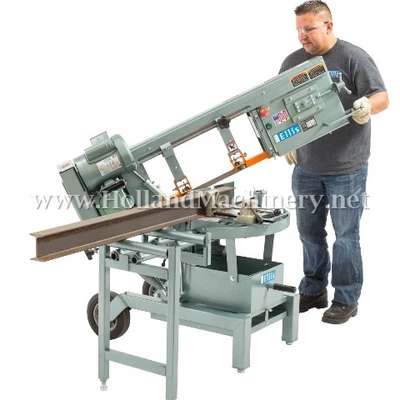

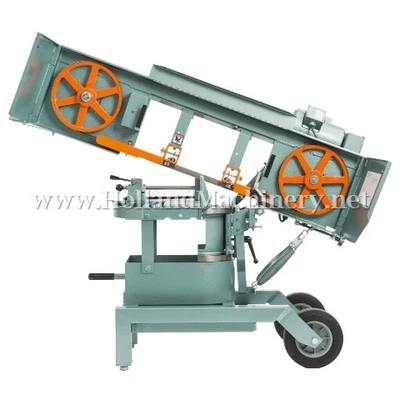

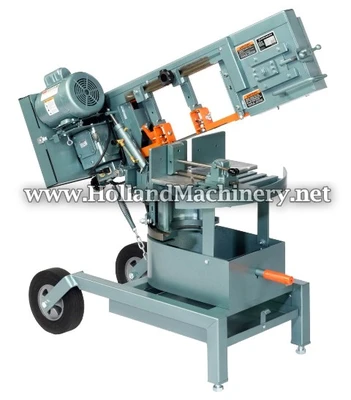

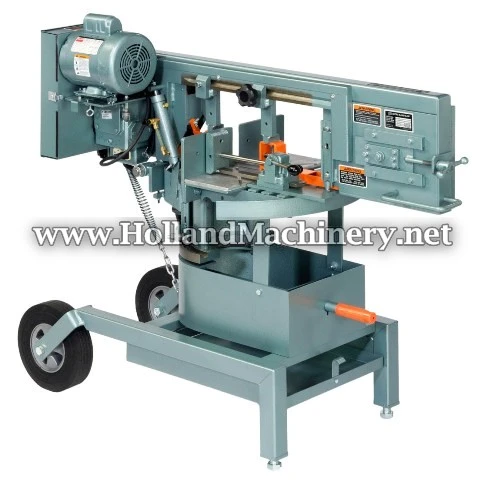

ELLIS 1200 MITER BAND SAW

NEW "ELLIS" 1200 MITER BAND SAW
CAPACITY (90° & 45°)
8" ROUNAD AT 90°
10" PIPE AT 90°
10" FLAT AT 90°
6" ROUND AT 45°
5" PIPE AT 45°
6" FLAT AT 45°
BLADE SPEEDS (3) 60-120-230 FPM
BLADE SIZE 8'6" x 5/8" x .032
FEED CONTROL HYDRAULIC ADJUSTING
VISE QUICK ADJUSTING CAMLOCK
SHUT OFF AUTOMATIC
MOTOR-STANDARD 3/4 HP / 110/220V/ 1 PHASE
PORTABLE 10" WHEELS-STANDARD
WEIGHT 385 LBS. (APPROX)
TABLE HEIGHT 27"
DIMENSIONS 52" x 23" x 44"

STANDARD: SEALED OIL BATH WORM GEAR, REMOVABLE CHIP TRAY
-Head of band saw moves left or right for angle cutting
-Built-in Protractor for fast and accurate selection of angles

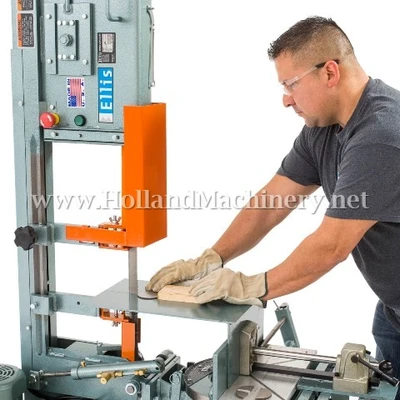

-One-step conversion from horizontal to vertical band saw
-Stock remains in one position for all cuts
-Miters 45° both ways

ASK ABOUT ADDITIONAL OPTIONS
OPTIONS IN PICTURES
