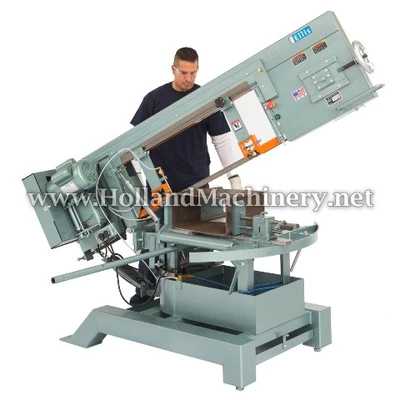

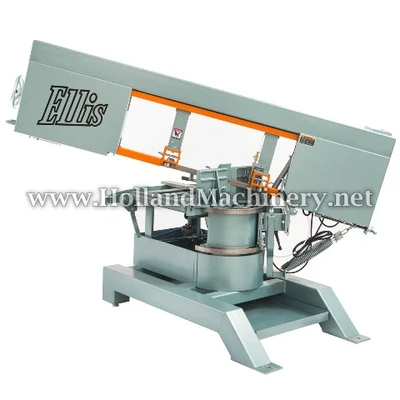

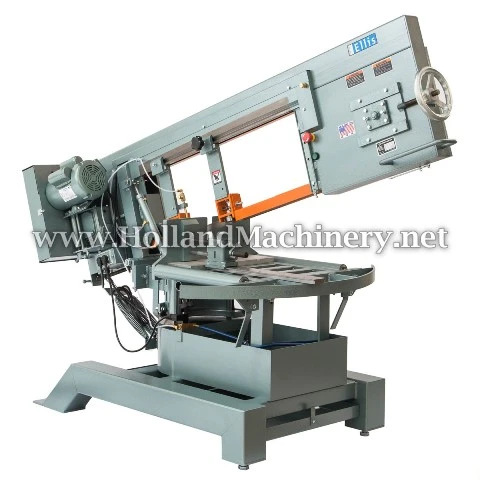

ELLIS 4000 MITER BAND SAW

NEW "ELLIS" 4000 MITER BAND SAW
CAPACITY (90° & 45°)
13-1/2" ROUND AT 90°
12" PIPE AT 90°
22" FLAT AT 90°
13" H x 16" W TUBE AT 90°
13-1/2" ROUND AT 45°
12" PIPE AT 45°
14" FLAT AT 45°
13" SQUARE TUBE AT 45°
BLADE SPEEDS VARIABLE 60-180 FPM
BLADE SIZE 15'0" x 1-1/4"
FEED CONTROL HYDRAULIC ADJUSTING
VISE QUICK ADJUSTING SCREW TYPE
SHUT OFF AUTOMATIC
MOTOR-STANDARD 2 HP / 220V/ 1 PHASE
OPTIONAL - 220-440-460-480-575/ 3 PHASE
WEIGHT 1,250 LBS.(APPROX)
TABLE HEIGHT 29-3/8"
TABLE BACK 7-1/4"
DIMENSIONS 90" x 43-1/4" x 50"

STANDARD: SEALED OIL BATH WORM GEAR, REMOVABLE CHIP TRAY, AIR SYSTEM
-HEAD OF BAND SAW MOVES LEFT OR RIGHT FOR ANGLE CUTTING
-BUILT-IN PROTRACTOR FOR FAST AND ACCURATE SELECTION OF ANGLES
-STOCK REMAINS IN ONE POSITION FOR ALL CUTS
-MITERS 45° BOTH WAYS

ASK ABOUT OPTIONAL EQUIPMENT

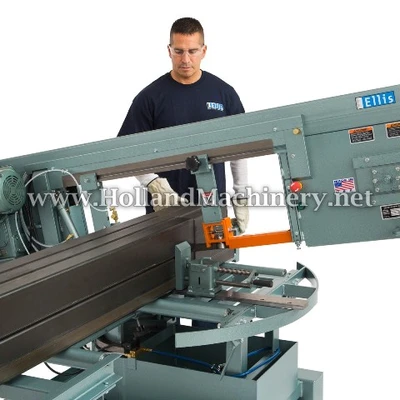

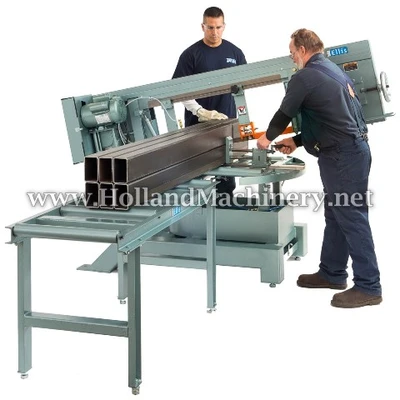

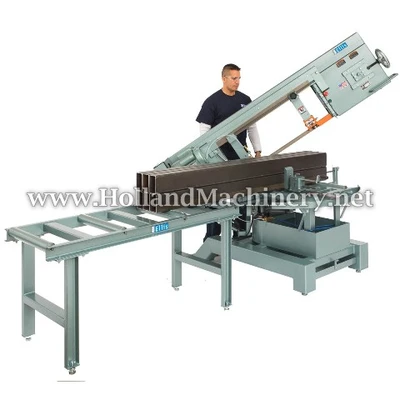

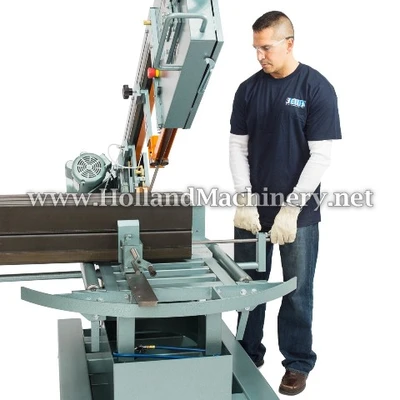

OPTIONS IN PICTURES
