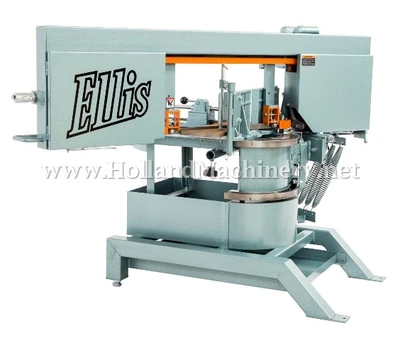

ELLIS 2000 MITER BAND SAW

NEW "ELLIS" 2000 MITER BAND SAW
CAPACITY (90° & 45°)
11" ROUND AT 90°
10" PIPE AT 90°
17" FLAT AT 90°
11" H x 13" W AT 90°
11" ROUND AT 45°
10" PIPE AT 45°
11" FLAT AT 45°
9" H x 11" W AT 45°
6" WIDE x 9" AT 60° HIGH RECTANGLE
6" WIDE x 6" AT 60° HIGH -SQUARE
7" WIDE x 2" AT 60° THICK FLAT STOCK
6" PIPE (6 7/8" O.D.) AT 60° PIPE
BLADE SPEEDS (3) - 60-115-230 FPM
BLADE SIZE - 12'0" x 1" x .035
HEAD PRESSURE - HYDRAULIC CYLINDER
VISE - QUICK ADJUSTING CAMLOCK
SHUT OFF - AUTOMATIC
MOTOR-STANDARD 1-1/2 HP / 220V/ 1 PHASE
OPTIONAL - 220-440-460-480-575/ 3 PHASE
WEIGHT 800 LBS. (APPROX)
TABLE HEIGHT 28-1/8"
DIMENSIONS 72" x 38-1/4" x 47"
-STANDARD: SEALED OIL BATH WORM GEAR, REMOVABLE CHIP TRAY

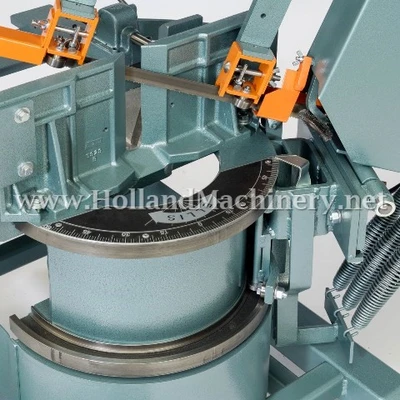

-BUILT-IN PROTRACTOR FOR FAST AND ACCURATE SELECTION OF ANGLES
-STOCK REMAINS IN ONE POSITION FOR ALL CUTS
-MITERS 60° BOTH WAYS
ASK ABOUT ADDITIONAL OPTIONS

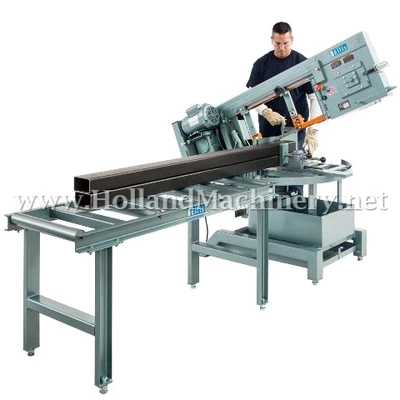

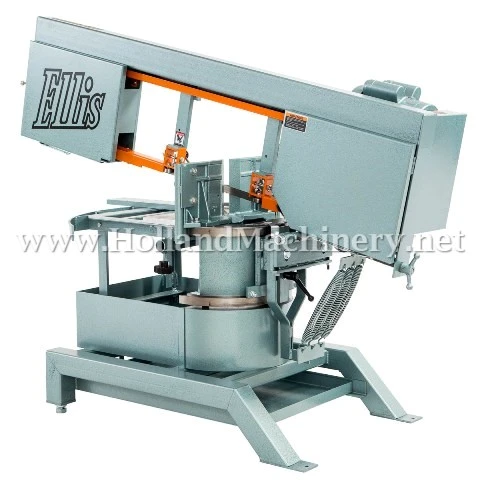

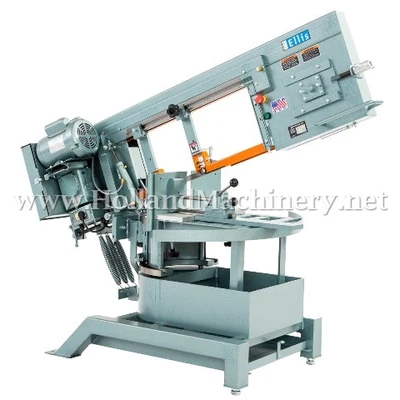

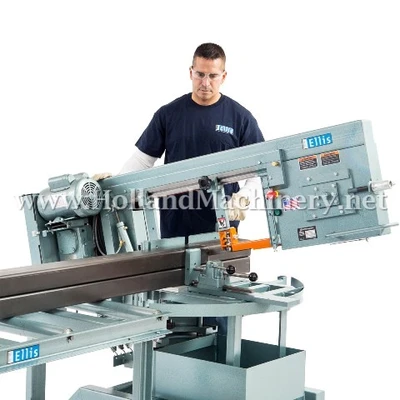

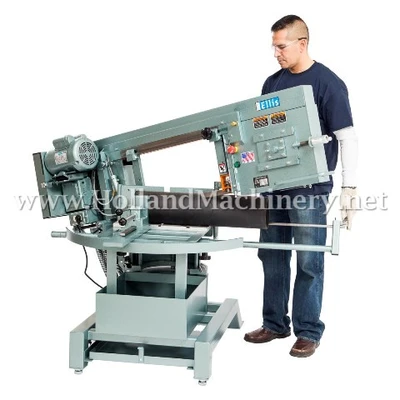

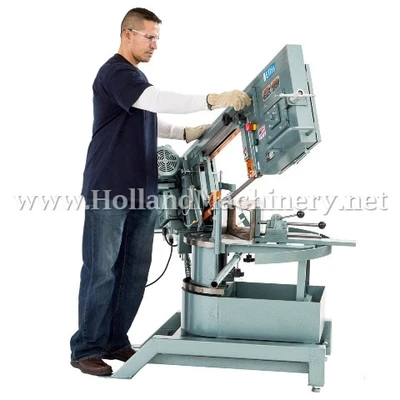

OPTIONS IN PICTURES
