ELLIS 1800 MITER BAND SAW

NEW "ELLIS" 1800 MITER BAND SAW
CAPACITY (90° & 45°)
11" ROUND AT 90°
10" PIPE AT 90°
14" FLAT AT 90°
11" H x 10" W AT 90°
9" ROUND AT 45°
8" PIPE AT 45°
9" FLAT AT 45°
11" H x 6" W AT 45°
BLADE SPEEDS (3) 55-115-230 FPM
BLADE SIZE 11'0" x 1"
FEED CONTROL HYDRAULIC ADJUSTING
VISE QUICK ADJUSTING CAMLOCK
SHUT OFF AUTOMATIC
MOTOR-STANDARD 1HP / 110/220V/ 1 PHASE
OPTIONAL 220-440-460-480-575/ 3 PHASE
WEIGHT 650 LBS. (APPROX)
TABLE HEIGHT 28"
DIMENSIONS 66" x 29-3/8" x 47"

STANDARD: SEALED OIL BATH WORM GEAR, REMOVABLE CHIP TRAY
CONSTRUCTION: HEAVY STEEL, WELDED & MACHINED FOR ACCURACY & DURABILITY

OPTIONAL EQUIPMENT AVAILABLE

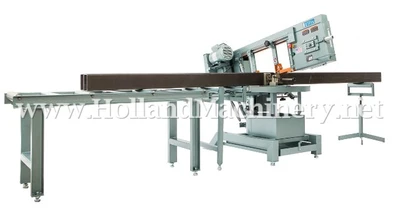

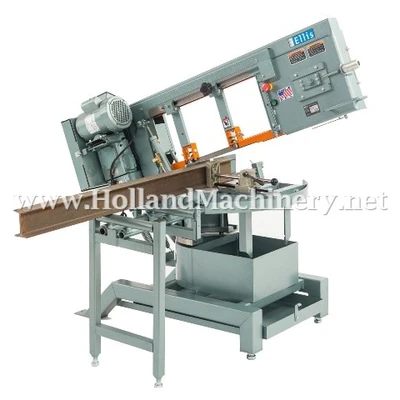

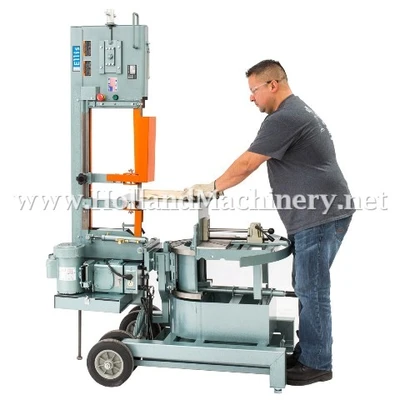

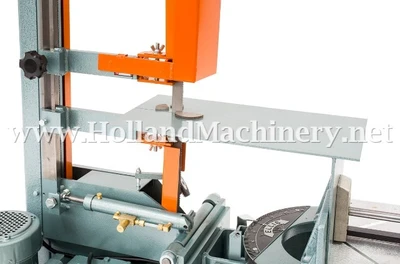

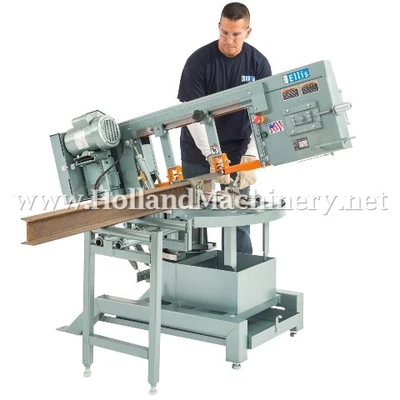

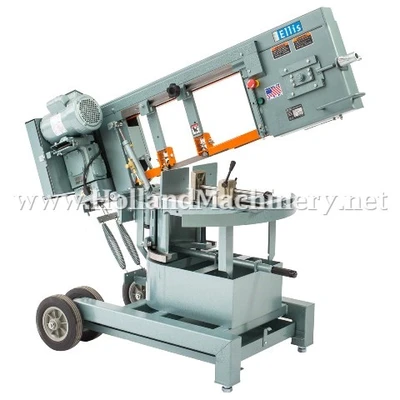

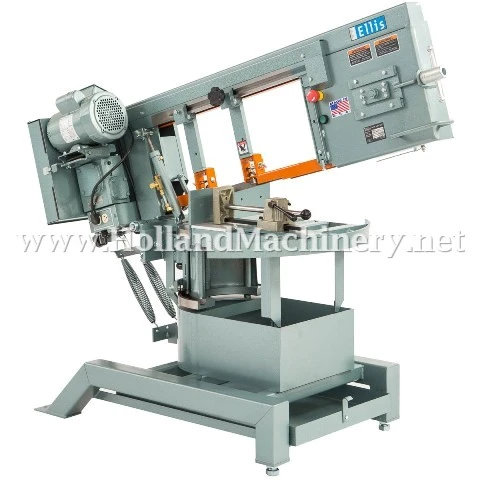

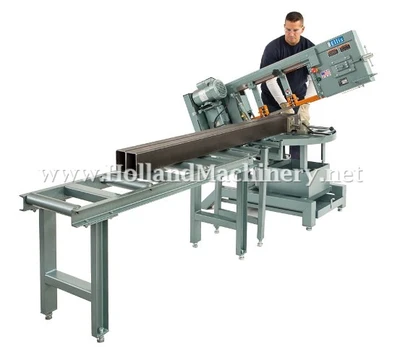

PICTURES SHOWN WITH OPTIONAL EQUIPMENT
