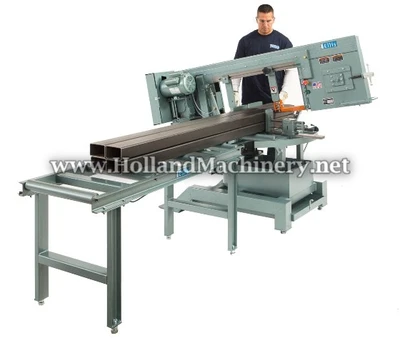

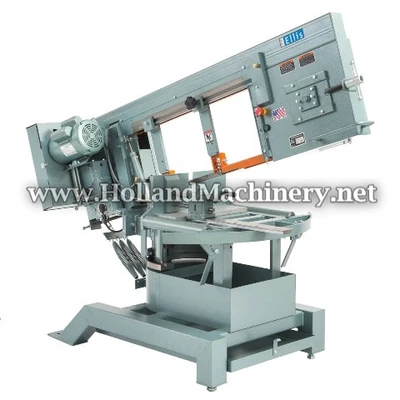

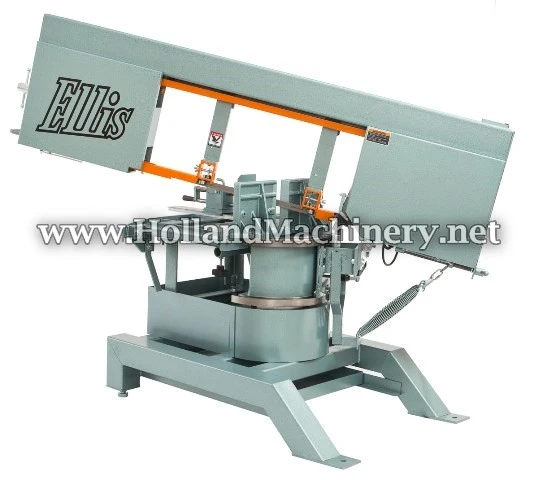

ELLIS 3000 MITER BAND SAW

NEW "ELLIS" 3000 MITER BAND SAW
CAPACITY (90° & 45°)
13-1/2" ROUND AT 90°
12" PIPE AT 90°
19" FLAT AT 90°
12" H x 16" W TUBE AT 90°
13" ROUND AT 45°
12" PIPE AT 45°
13" FLAT AT 45°
12" H x 10" W AT 45°
BLADE SPEEDS VARIABLE 60-190 FPM
BLADE SIZE 13'6" x 1"
FEED CONTROL HYDRAULIC ADJUSTING
VISE QUICK ADJUSTING SCREW TYPE
SHUT OFF AUTOMATIC
MOTOR-STANDARD 2 HP / 220V/ 1 PHASE
OPTIONAL - 220-440-460-480-575/ 3 PHASE
WEIGHT 1,000 LBS. (APPROX)
TABLE HEIGHT 29-1/2"
DIMENSIONS 81" x 39-1/4" x 50"
STANDARD: SEALED OIL BATH WORM GEAR, REMOVABLE CHIP TRAY
CONSTRUCTION: HEAVY STEEL, WELDED & MACHINED FOR ACCURACY & DURABILITY
-HEAD OF BAND SAW MOVES LEFT OR RIGHT FOR ANGLE CUTTING
-BUILT-IN PROTRACTOR FOR FAST AND ACCURATE SELECTION OF ANGLES

ASK ABOUT OPTIONAL EQUIPMENT
OPTIONS IN PICTURES
