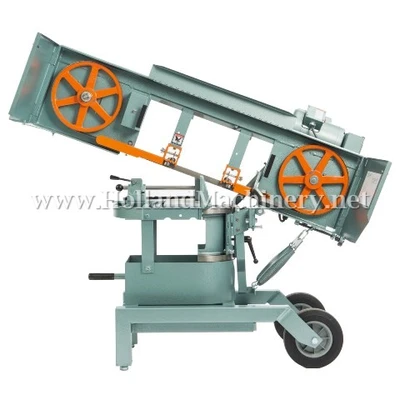

ELLIS 1600 MITER BAND SAW

NEW "ELLIS" 1600 MITER BAND SAW
CAPACITY (90° & 45°)
-10" Round at 90°
-8" Pipe at 90°
-11" Flat at 90°
-6-7/8" Round at 45°
-6" Pipe at 45°
-7-1/4" Flat at 45°
-10" H x 8" W at 90°
-8" H x 6" W at 45°
BLADE SPEEDS (3) 55-115-230 FPM
BLADE SIZE 10'0" x 1"
FEED CONTROL HYDRAULIC ADJUSTING
VISE: QUICK ADJUSTING CAMLOCK
SHUT OFF: AUTOMATIC
MOTOR-STANDARD: 1HP/ 110/220V/ 1 PHASE
OPTIONAL: 3HP/ 220-440-460-480-575
TABLE HEIGHT 27"
WEIGHT: 525 LBS.(APPROX)
DIMENSIONS: 59" x 24-3/4" x 47"

-STANDARD: SEALED OIL BATH WORM GEAR, REMOVABLE CHIP TRAY, WHEELS 10"

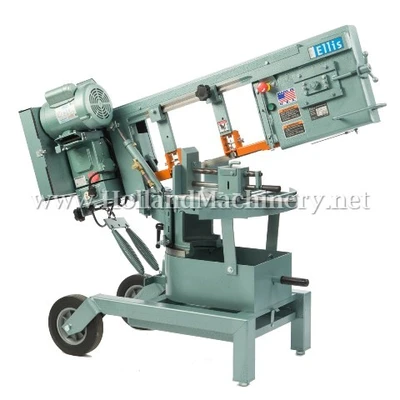

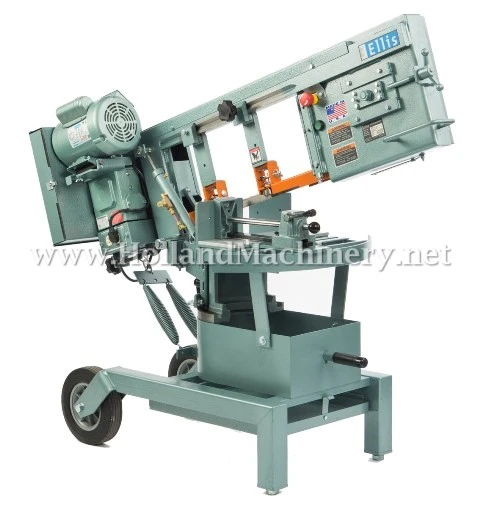

-HEAD OF BAND SAW MOVES LEFT OR RIGHT FOR ANGLE CUTTING
-BUILT-IN PROTRACTOR FOR FAST AND ACCURATE SELECTION OF ANGLES

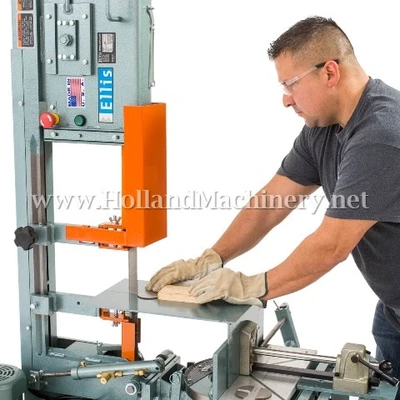

-ONE-STEP CONVERSION FROM HORIZONTAL TO VERTICAL BAND SAW
-STOCK REMAINS IN ONE POSITION FOR ALL CUTS
-MITERS 45° BOTH WAYS

OPTIONAL EQUIPMENT AVAILABLE

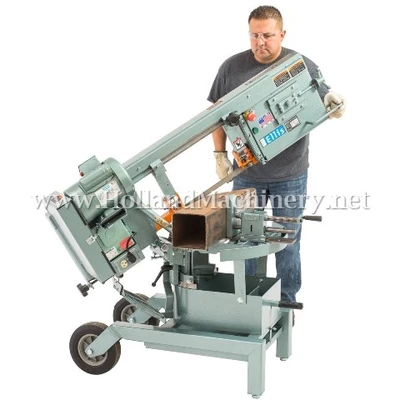

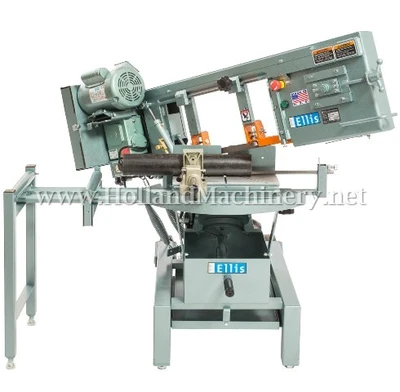

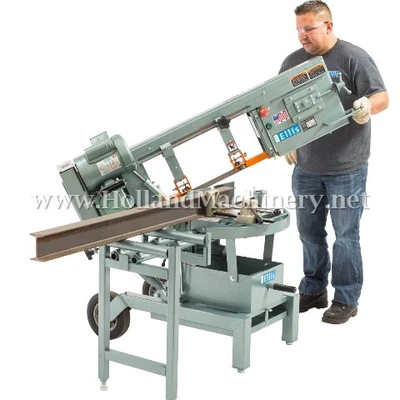

PICTURES SHOWN WITH OPTIONAL EQUIPMENT
