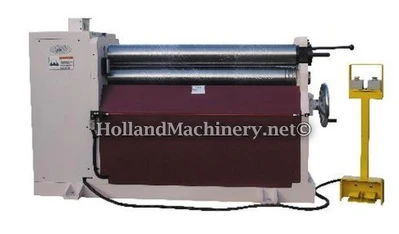

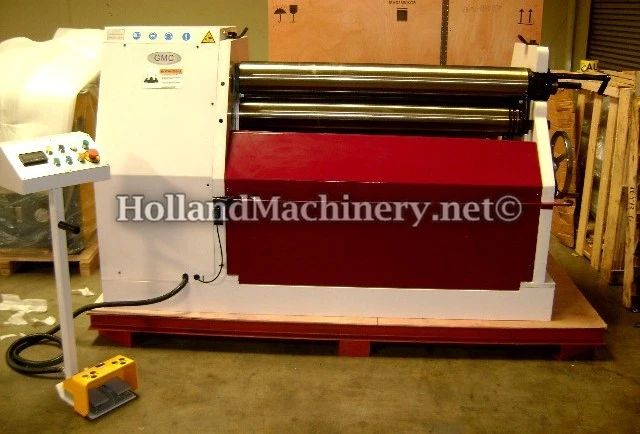

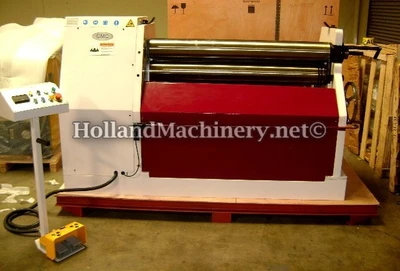

NEW GMC HBR-05316

NEW "GMC" INITIAL PINCH HYDRAULIC PLATE BENDING ROLL
MOTORIZED BENDING ROLL, PUSH BUTTON AND DIGITAL DISPLAY
MODEL HBR-05316
CAPACITY 62" x 3/16" (MILD STEEL)
CAPACITY 62" x 11 GAUGE (STAINLESS STEEL)
DIAMETER OF ROLLS 5-7/8"
MINIMUM ROLL BENDING DIAMETER CAP. 8-1/4"
ROLL OPENING 2-1/16"
SPEED OF ROLLS 15.8 F.P.M.
WIRE GROOVES 3/8", 1/2" & 5/8"
MOTOR 5.5 HP/220-440/3/60
HYDRAULIC OIL CAPACITY 25 GALLONS
REMOTE FOOT PEDAL
LED INDICATOR
ADJUSTABLE CONE ATTACHMENT
WEIGHT 5,650 LBS. (APPROX.)
