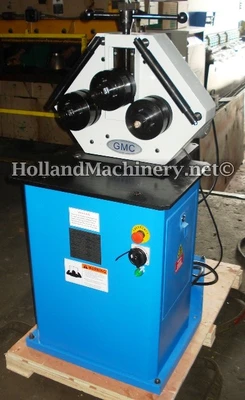

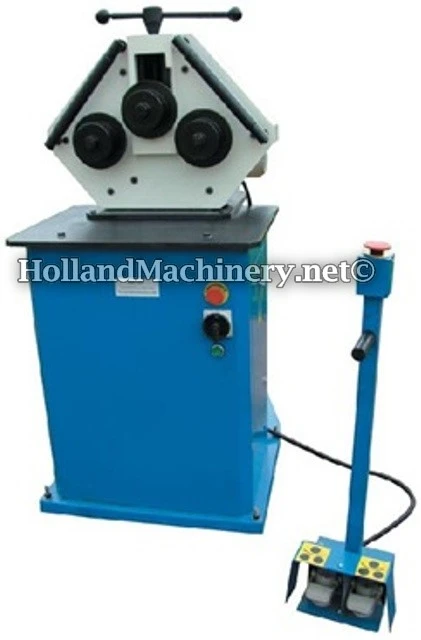

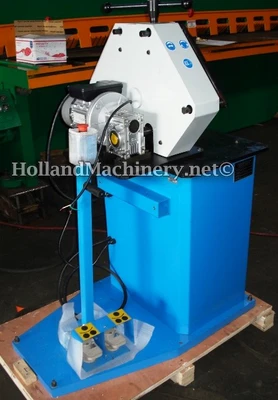

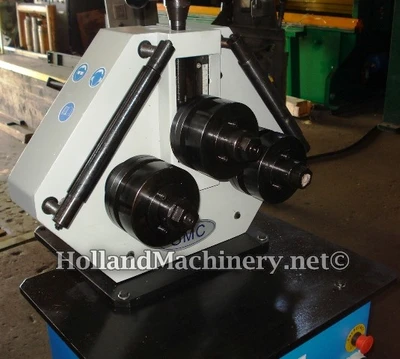

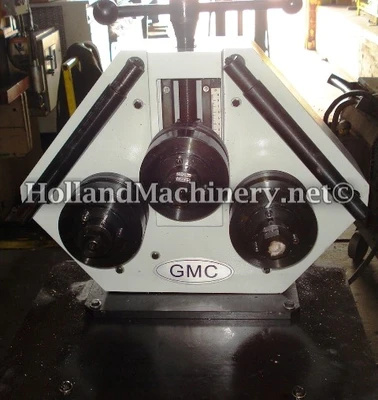

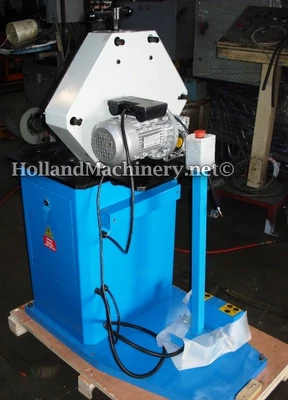

NEW "GMC" POWER ANGLE BENDING ROLL
MODEL PRB-30HV
3 ROLL HORIZONTAL / VERTICAL OPERATION
CAPACITY:
MAX. 1" SCH. 40 PIPE @ 24" DIAMETER
MAX. 1-1/2" TUBE (.06" WALL THICKNESS) @ 24" DIAMETER
MAX. 1" SOLID ROUND BAR
MAX. 1-1/2" x 1-1/2" x 3/16" ANGLE IRON LEG IN/OUT @ 16" DIAMETER
SHAFT DIAM. 1-1/8"
ROLL DIAM. 5-3/8"
SPEED 9 RPM
DRIVE MOTOR 1 HP/220/1/60
WEIGHT 650 LBS (APPROX.)
MANUAL ADJUSTED TOP ROLL
REMOTE FOOT PEDAL
