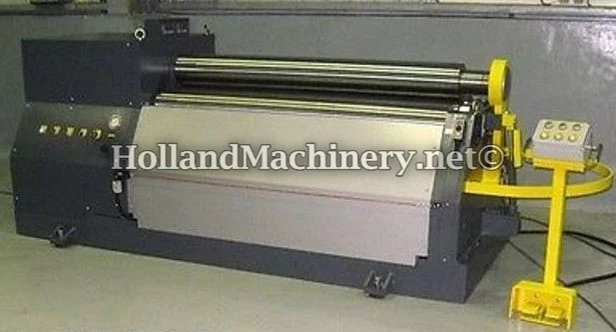

NEW GMC HBR-010375-4R

NEW "GMC" 4 ROLL HYDRAULIC HEAVY DUTY PLATE ROLL
PUSH BUTTON AND DIGITAL DISPLAY
2 ROLLS UP/DOWN HYDRAULICALLY DRIVEN WITH LED INDICATORS
MODEL HBR-010375-4R
CAPACITY 120" x 3/8" (MILD STEEL) @ 51" DIAMETER
CAPACITY 120" x 5/16" (MILD STEEL) @ 15" DIAMETER
DIAMETER OF TOP ROLL 10-1/4"
DIAMETER OF BOTTOM ROLL 9"
DIAMETER OF BENDING ROLLS 8-1/4"
MINIMUM ROLL BENDING DIAMETER CAP. 15-1/4"
SPEED OF ROLLS 10 F.P.M.
HYDRAULIC TANK CAPACITY 45 GALLONS
MOTOR 10 HP/220-440/3/60
DIMENSIONS 177" x 60" x 59"
REMOTE FOOT PEDAL
WEIGHT 16,850 LBS. (APPROX.)
