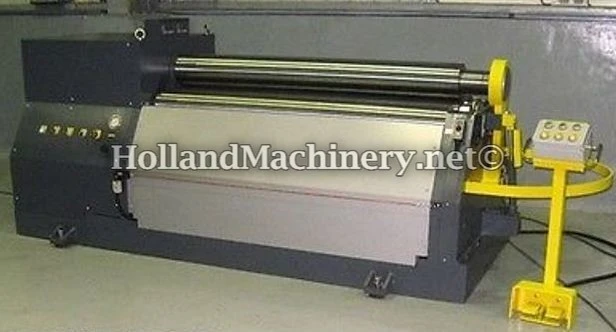

NEW GMC HBR-08375-4R

NEW "GMC" 4 ROLL HYDRAULIC HEAVY DUTY PLATE ROLL
PUSH BUTTON AND DIGITAL DISPLAY
2 ROLLS UP/DOWN HYDRAULICALLY DRIVEN WITH LED INDICATORS
MODEL HBR-08375-4R
CAPACITY 96" x 3/8" (MILD STEEL) @ 47" DIAMETER
CAPACITY 96" x 5/16" (MILD STEEL) @ 14" DIAMETER
DIAMETER OF TOP ROLL 9-1/2"
DIAMETER OF BOTTOM ROLL 8-1/4"
DIAMETER OF BENDING ROLLS 7-1/2"
MINIMUM ROLL BENDING DIAMETER CAP. 14-1/4"
SPEED OF ROLLS 10 F.P.M.
HYDRAULIC TANK CAPACITY 45 GALLONS
MOTOR 10 HP/220-440/3/60
REMOTE FOOT PEDAL
DIMENSIONS 177" x 60" x 59"
WEIGHT 13,850 LBS. (APPROX.)
