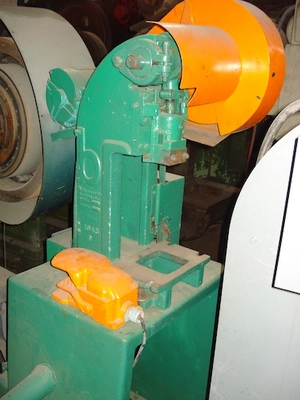

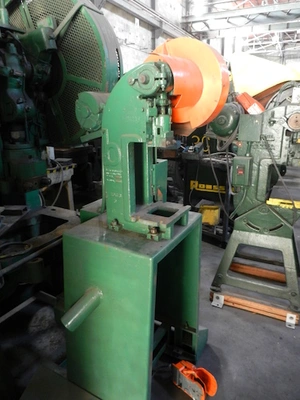

USED "BENCHMASTER" OPEN BACK POWER PUNCH PRESS
CAPACITY 5 TON
STROKE 1-1/2"
SHUT HEIGHT, BED TO SLIDE (STROKE UP, ADJ. DOWN) 9-1/2"
ADJUSTMENT OF SLIDE 1"
BED AREA 6-1/2" x 10"
OPENING THRU THE BED 4-1/2" x 4-1/2"
OPENING THRU THE FRAME 4"
THROAT DEPTH, CENTER OF SLIDE TO FRAME 4"
MOTOR 1/2 H.P./3/220-440/60cy (WIRED 220V)
EQUIPPED WITH:
MOUNTED ON CASTERS & REMOTE FOOT PEDAL
