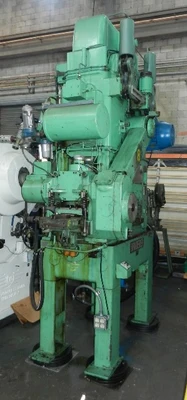

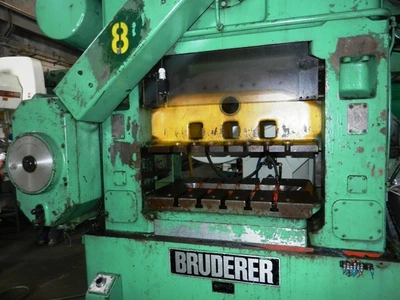

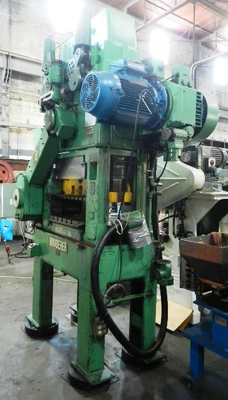

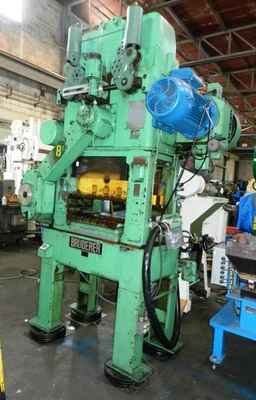

USED "BRUDERER" PRECISION HIGH SPEED POWER PUNCH PRESS
MODEL BSTA-45
SERIAL # 4862
40 METRIC TONS (45 STANDARD TONS)
ADJUSTABLE STROKE 1/2" to 2-1/2" (13mm – 57.5mm)
MAX. SHUT HEIGHT 10.25" (259mm)
RAM ADJUSTMENT 2" (51mm)
RAM AREA 15.5" x 25.75"
DISTANCE BETWEEN POST 25" x 9"
OPENING THRU FRAME 12"
BED AREA 26.25" x 21.62" (670mm x 550mm)
HOLE THRU BED 12-1/2" x 4"
SPEED (VARIABLE) 100 to 1,200 S.P.M. @ 0.5" STROKE
SPEED (VARIABLE) 70 to 550 S.P.M. @ 2.5" STROKE
MOTOR 15 HP/440/3PH/60
WEIGHT 12,000 LBS. (APPROX.)
DIMENSIONS 42" x 52" x 86"
AIR CLUTCH & BOLSTER PLATE 3"
CENTRAL LUBRICATION
GUARDS & CONTROLS
