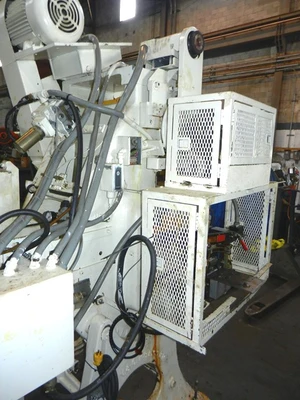

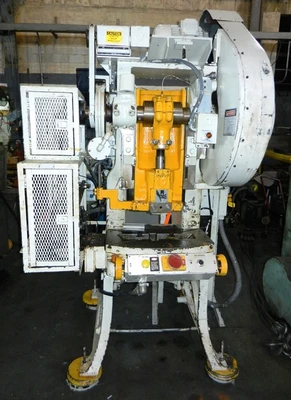

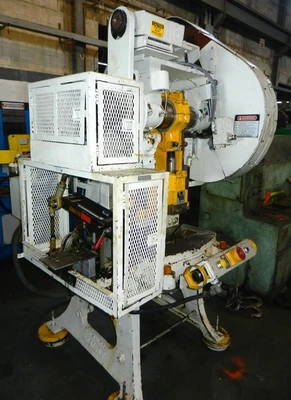

USED "V&O" MECHANICAL O.B.I. HIGH SPEED PRECISION PUNCH PRESS
EQUIPPED WITH AIR CLUTCH & AIR BRAKE (REBUILT BY FEDERAL PRESS CO.)
MODEL 32
REBUILT 11/1993
CAPACITY NEAR BOTTOM OF STROKE 32 TONS
AREA OF BED 14" x 26-1/2"
HOLE THRU THE BED 11" x 17"
WIDTH OF OPENING THROUGH BACK 16"
DEPTH OF THROAT CENTER OF SLIDE TO FRAME 8"
SHUT HEIGHT BED TO SLIDE (STROKE DOWN, ADJ. UP) 9"
STROKE 2"
ADJUSTMENT OF SLIDE 2"
SPEEDS FROM 85 UP TO 325 STROKES PER MINUTE
MOTOR 3 HP/440/3/60cy
WEIGHT 5,500 LBS. (APPROX.)
EQUIPPED WITH:
2" BOLSTER PLATE

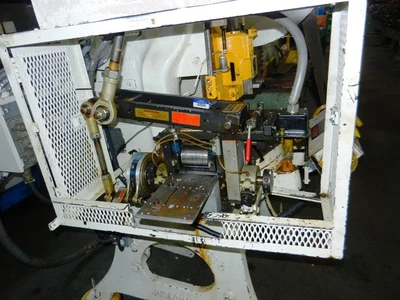

MECHANICAL FEEDER

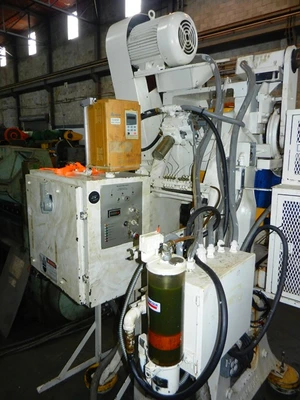

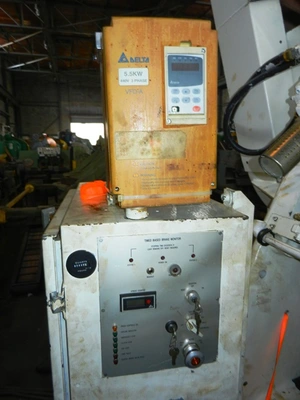

"DELTA" VFD CONTROLLER
CENTRAL LUBRICATION
ELECTRICAL/PNEUMATIC CONTROLS
FLYWHEEL GUARDS
