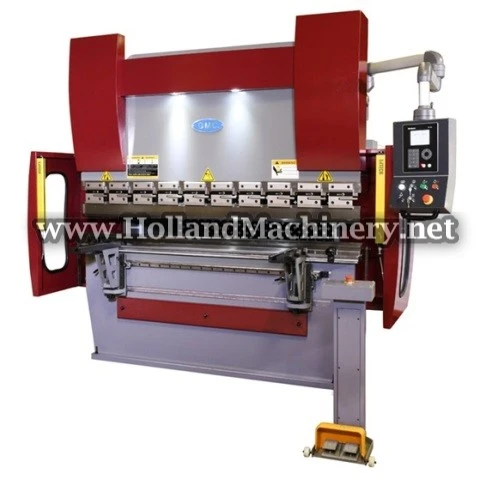

GMC 10' x 175 ton HYD. CNC PRESS BRAKE

Maximum Pressure 175 tons
Bending Length Capacity 126" (10'6")
Distance between Upright (housing) 105"
Ram Stroke Travel 8"
Cylinder Travel Adjustment, Max 3-1/8"
Table Width 10"
Distance between Table and Ram 18-1/4"
Throat Depth 13-3/4"
Back Gauge Distance 24"
Back Gauge Repeatability .0039"
Y Axis Repeatability .0039"
Approach Speed, Inch/ Second 3.14"
Working Speed, Inch/ Second 0.35"
Return Speed, Inch / Second 2.36"
Main Motor 15 HP, 220V, 3phase
Servo Motor for Back Gauge 2 HP, 220V
Servo Motor for Bending Angle Setting 1-1/2 HP, 220V
Hydraulic Oil Tank Capacity 135 gal.
Machine Weight 23,350 lbs. (Approx.)
Machine Size (L x W x H) 137" x 69" x 101"
STANDARD EQUIPMENT:
Delem 41, 2 Axis CNC control with 100 programs
(2) 24" front support arms on T slot movement
And More..
