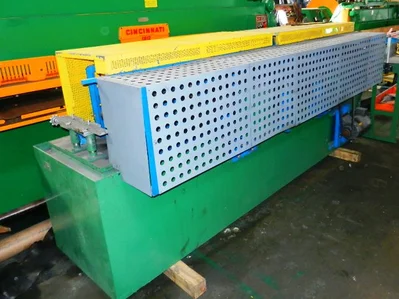

USED CHAIN DRIVEN ROLLFORMER "ROLL-MATIC"
MODEL 15
SERIAL # 92635

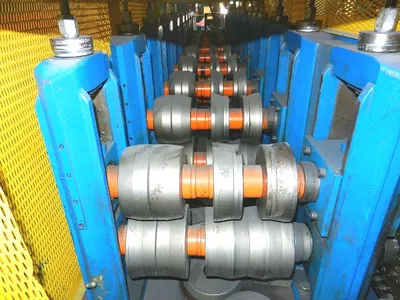

NUMBER OF STATIONS 10
SHAFT DIAMETER 1-1/2"
SPACE BETWEEN HOUSINGS 10" (ROLLSPACE)
DISTANCE BETWEEN BASE TO CENTER OF THE LOWEST SHAFT 5-3/8"
3" VERTICAL ADJUST
11" HORIZONTAL CENTERS

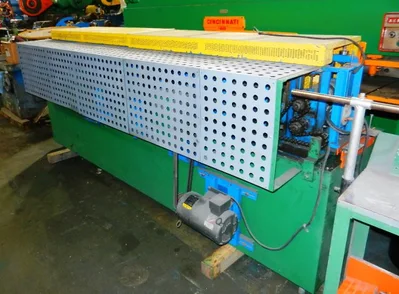

MOTOR 7.5 HP/220-440/3/60
2 GEARBOX REDUCERS
EQUIPPED WITH:
TOOLING TO PRODUCE A 1" x 1" ANGLE
TOOLING TO PROCUCE A HIGH HAT TYPE STIFFNER

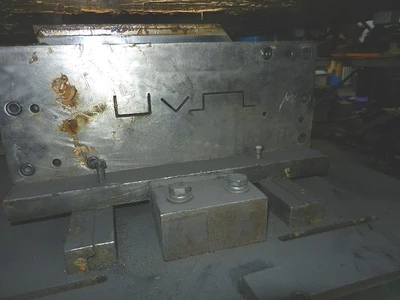

CUT OFF DIE SET
