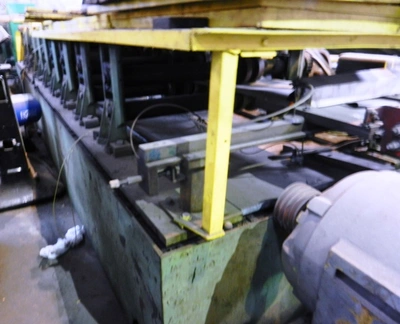

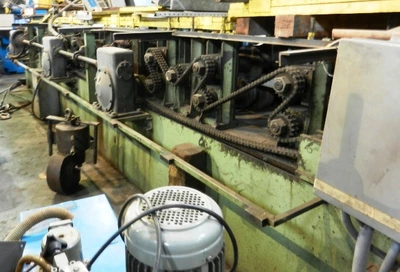

ROLLFORMER "ROLADOR" DBL CHAIN DRIVEN
# OF STATIONS 10
SHAFT DIAM. 3"
ROLLSPACE 37"
3-1/2" VERTICAL ADJUST MIN. 5"– MAX. 8-1/2"
20" HORIZ. CENTERS
MOTOR 30 HP/230-460/3/60
3 GEARBOX REDUCERS 20 TO 1

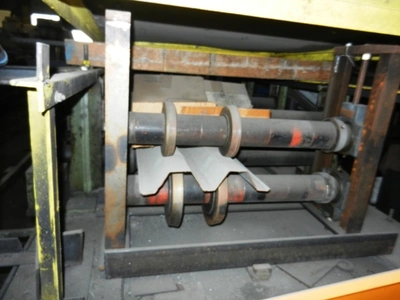

ENTRY GUIDE TABLE,
EXIT STRAIGHTENING STATION,
TOOLING FOR HURRICANE PANEL WITH 2" HEIGHT & 12" COVERAGE
VARIABLE SPEED UNIT, CONTROL PANEL

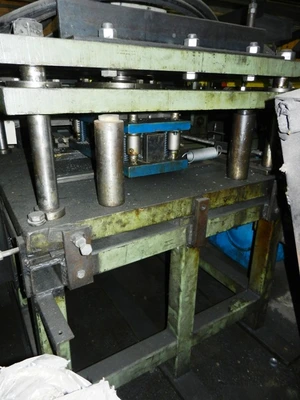

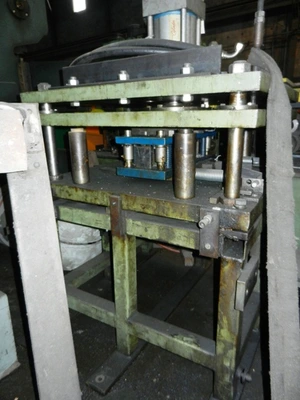

"ROLADOR" 4 POST PRESS
HYD. OPERATED
WITH FLYING MECH. CUT OFF DIE SET
40" x 40" PLATEN SIZE
32" x 32" BETWEEN COLUMNS
3" STROKE

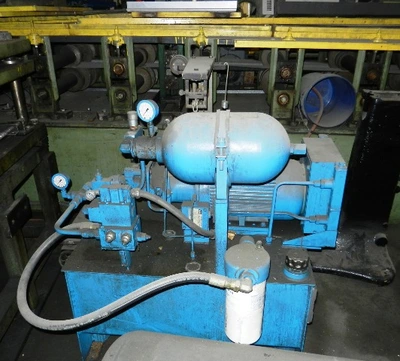

HYDRAULIC UNIT "ADAMS"
MOTOR 10 HP/230-460/3/60
HYD. CAPACITY 30 GALLONS
VARIABLE PUMP, HEAT EXCHANGER, ACCUMULATOR

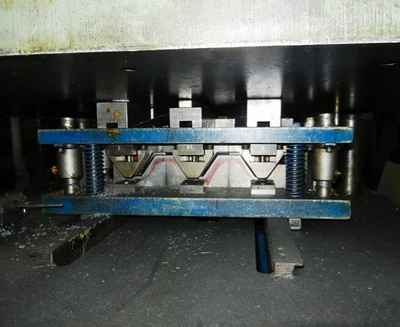

CUT OFF/PUNCHING DIE

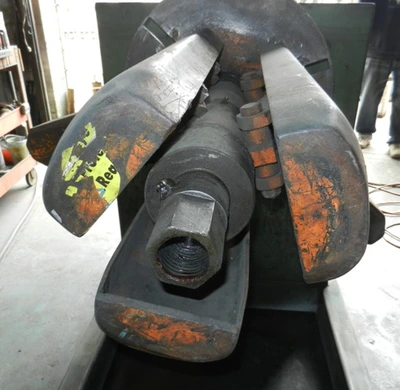

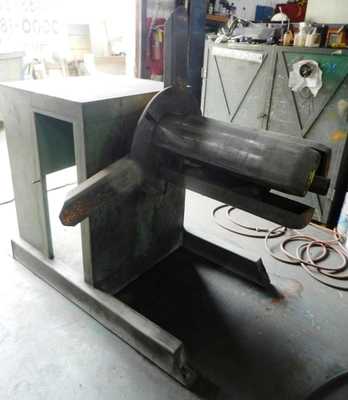

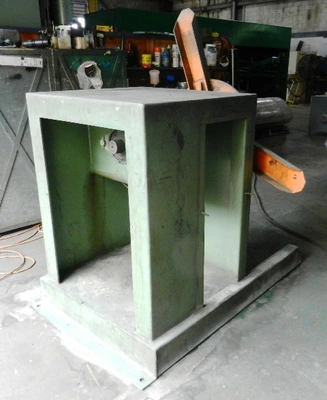

UNCOILER PULL OFF TYPE
"AMERICAN STEEL LINE"
YEAR 8/1993
CAPACITY 4,000 LBS
MAX. WIDTH 36"
I.D. 14" TO 21"
O.D. MAX. 54"
MECH. DRAG BRAKE
MANUAL EXPANSION
ONE COMPUTERIZED CENTRAL CONTROL PANEL FOR ALL THE ELEMENTS OF THE LINE
PLUS TO CONTROL THE LENGTH AND THE NUMBER OF PIECES
