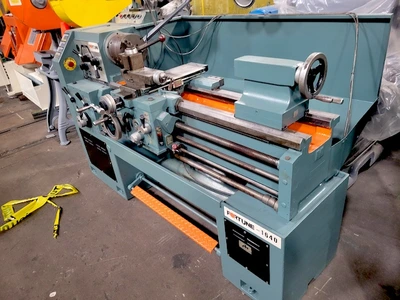

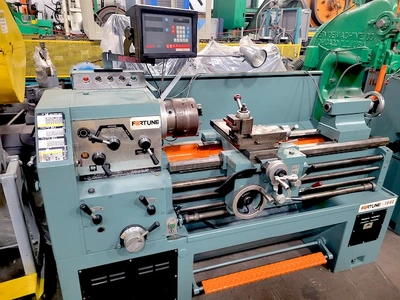

USED "FORTUNE VICTOR" GEARED HEAD
QUICK CHANGE ENGINE LATHE GAP TYPE 16" x 40"
MODEL FORTUNE 1640
SERIAL NUMBER 505808
SWING OVER THE BED 16"
SWING OVER THE GAP 23-1/4"
LENGTH OF THE GAP 8.5"
SWING OVER THE CARRIAGE 10-1/4"
DISTANCE BETWEEN CENTERS 40"
SPINDLE BORE 2-1/16"
SPINDLE MOUNT D1-6
SPINDLES SPEEDS (16) FROM 60 TO 1,800 RPM
THREADING INCHES FROM 4 TO 56 TPI
THREADING METRIC 0.2 TO 14 MM
TAIL STOCK TAPER MORSE #4
TAIL STOCK TRAVEL 4"
MOTOR 7.5 HP/ 220-440/ 3/ 60
EQUIPPED WITH:
8" 3 JAW CHUCK, QUICK CHANGE TOOL POST,
STEADY REST, COOLANT PUMP, THREADING DIAL,
FOOT BRAKE, WORK LIGHT AND 2 AXIS DIGITAL READ-OUT
