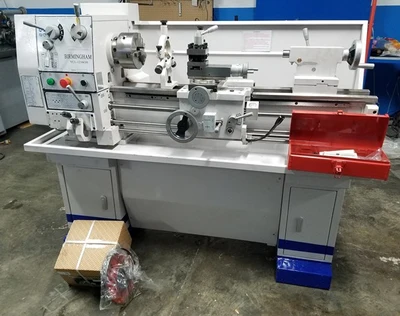

NEW "BIRMINGHAM" GEAR HEAD GAP TYPE ENGINE LATHE
MODEL YCL-1236
SWING OVER THE BED 12"
SWING OVER CARRIAGE 7"
SWING OVER THE GAP 17"
LENGTH OF THE GAP 7-7/8"
DISTANCE BETWEEN CENTERS 36"
SPINDLE HOLE 1-1/2"
SPEEDS (9) FROM 70 TO 1,400 R.P.M.
INCH AND / METRIC
D1-4 CAMLOCK SPIDLE
METRIC THREADING (30) 0.2mm TO 4.5mm
INCHES (40) 4 TO 112 TPI
TAILSTOCK TAPER #3 MT
TAILSTOCK BARREL TRAVEL 3-3/4"
MOTOR 2 HP/220/1/60
WEIGHT: 1,250 lbs. (APPROX.)
DIMENSIONS 62" x 28" x 51"
EQUIPPED WITH:
3 & 4 JAW CHUCK
4 WAY SQUARE TOOL POST
STEADY REST
FOLLOW REST
FACE PLATE
THREADING DIAL
CHIP PAN
SPLASH GUARD
FLOOR STAND
TOOL BOX
CHANGE GEARS FOR THREADING
