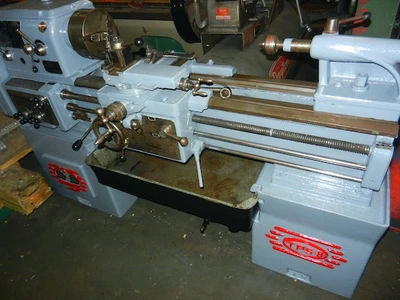

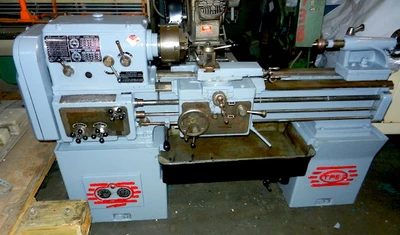

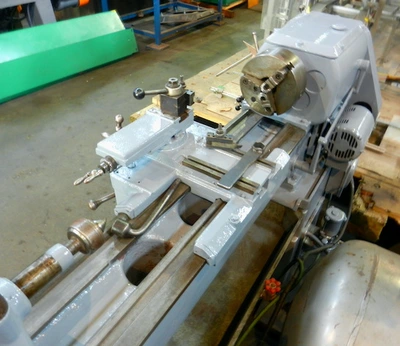

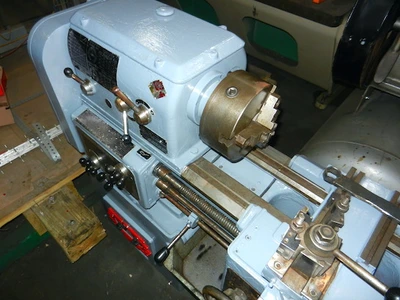

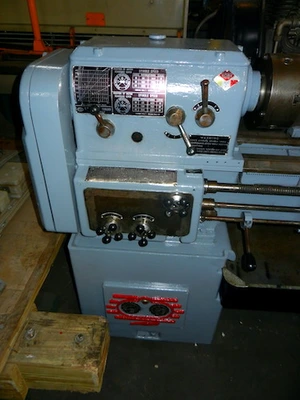

USED "TROGLIA" GAP BED GEAR HEAD ENGINE LATHE
MODEL TPS-8
SERIAL # 2865
SWING OVER THE BED 14"
SWING OVER THE GAP 20"
SWING OVER CARRIAGE 7-7/8"
LENGTH OF THE GAP 7-7/8"
DISTANCE BETWEEN CENTERS 32"
SPINDLE HOLE 1-3/8"
SPEEDS (6) FROM 50 TO 1,460 R.P.M.
INCH AND / METRIC / DIAMETRAL / MODULAR
TAILSTOCK TAPER #3 MT
TAILSTOCK QUILL DIAMETER 1-1/2"
TAILSTOCK BARREL TRAVEL 6"
MOTOR 3 HP/220-440/3/60
WEIGHT: 2,000 lbs.
DIMENSIONS 78" x 34" x 48"
EQUIPPED WITH:
3-JAW CHUCK
QUICK CHANGE TOOL POST
COOLANT PUMP
THREADING DIAL
CHIP PAN
MISC.
