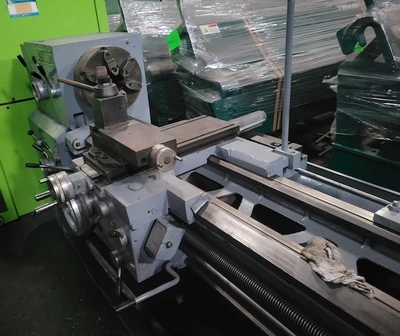

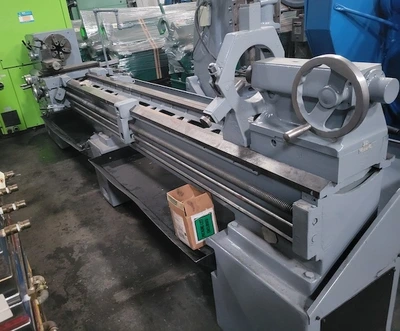

USED SUMMIT 21-4", SERIAL # 034/620292

USED "SUMMIT" GEARED HEAD, QUICK CHANGE ENGINE LATHE
GAP TYPE 21" x 120"
MODEL 21-4", SERIAL # 034/620292
SWING OVER THE BED 21"
SWING OVER THE CARRIAGE 13"
SWING OVER THE GAP 30"
LENGTH OF THE GAPE 15-3/8"
DISTANCE BETWEEN CENTERS 120"
SPEEDS (12) FROM 22 to 1,500 RPM
DIAMETER THRU THE SPINDLE 4-1/4"
SPINDEL MOUNT D1-8, SPINDLE TAPER MORSE # 5
THREADING IMPERIAL, METRIC, DIAMETRAL AND MODULAR
TAILSTOCK TAPER MORSE # 5
TAILSTOCK TRAVEL 8.5"
MOTOR 10HP/ 220-440/ 3/ 60

EQUIPPED WITH:
6 JAW UNIVERSAL CHUCK
QUICK CHANGE TOOL POST
STEADY REST
TAPER ATTACHMENT
