| Weight | 6,000 LBS. (APPROX) | 6,000 LBS. (APPROX) |

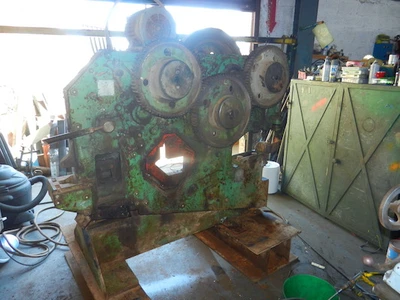

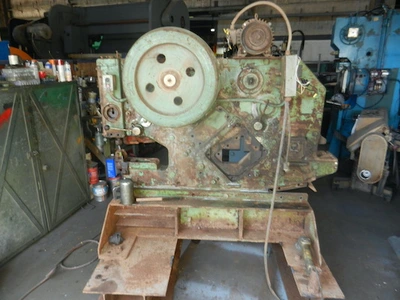

USED "MUBEA" MECHANICALLY OPERATED IRONWORKER
MODEL KBL 1/2
SERIAL#
PUNCH CAPACITY 55 TONS
STROKE 1-3/16"
STROKES PER MINUTE 40 TO 46
CAPACITY:
ANGLE CUTTING: 4" x 4" x 1/2" @ 90°
----------------------3.5" x 3.5" x 3/8" @ 45º
PUNCHING: 1" thru 5/8" or 3/4" thru 3/4"
THROAT DEPTH 15-3/4"
NOTCHING: 3" x 3" x 3/8"
SOLID ROUND BAR: 1-5/8"
SOLID SQUARE BAR: 1-1/2"
FLAT PLATE: 6" x 5/8"
MOTOR 3 HP/220-440V/3PH/6Ohz
DIMENSIONS 84" x 50" x 84"
WEIGHT 6,000 LBS. (APPROX)
