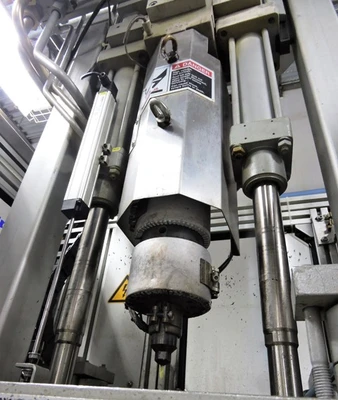

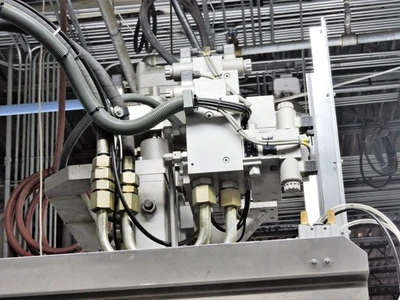

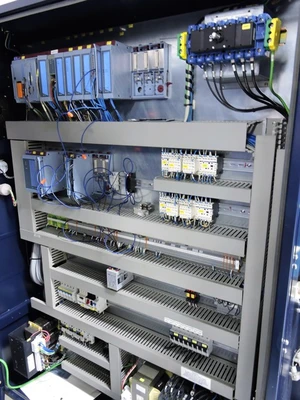

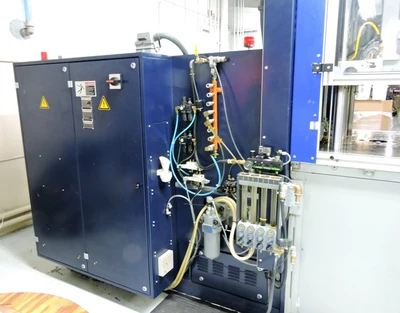

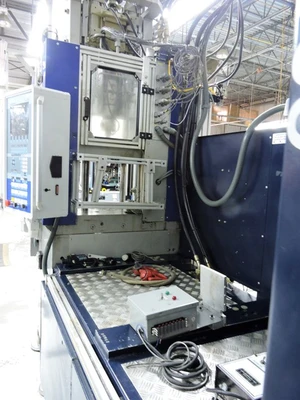

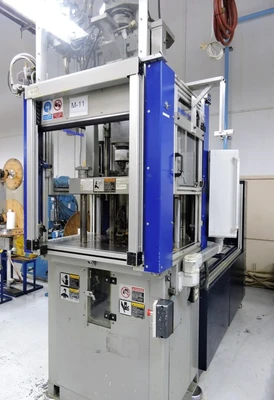

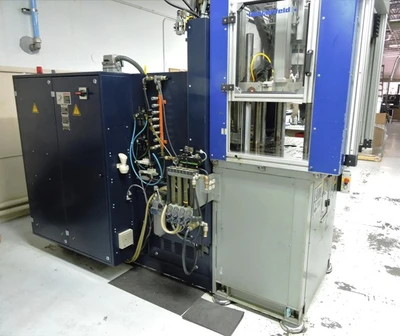

USED 2004 BATTENFELD V600/125

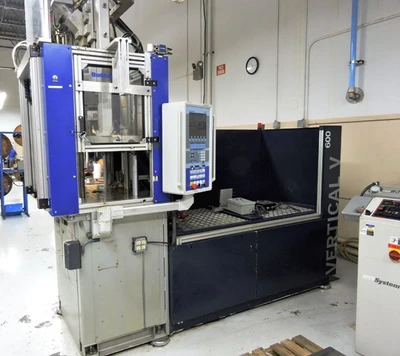

USED "BATTENFELD" PLASTIC INJECTION MACHINE
MODEL V600/125
SERIAL # 28052
YEAR OF MANUF. 2004
CLAMP FORCE 60 TONS
SCREW DIAMETER 22mm (7/8")
SHOT SIZE 41.5 GRAMS (1.46 OUNCE)
INJECTION PRESSURE 2,776 bar

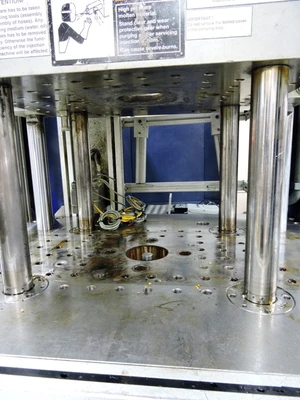

PLATEN SIZE 610mm x 560mm (24" x 22")
TIE BAR DISTANCE 320mm x 370mm (12.5" x 14-3/4")
MAX. DAYLIGHT OPENING 625mm (24.6")
OPENING STROKE 375mm (14.76")
MOLD HEIGHT 125mm – 375mm (4.94" – 14.76")
MOTOR 11 Kw/230-460/3/60
WEIGHT 9,000 LBS. (APPROX.)
DIMENSIONS 116" x 50" x 123" (APPROX.)
