USED BATTENFELD BSA 500/200 CDK-SE

USED "BATTENFELD" PLASTIC INJECTION MOLDING MACHINE
MODEL BSA 500/200 CDK-SE
SERIAL NUMBER # 25591
YEAR OF MANUFACTURE 2002
SHOT SIZE 48.4 GRAMS (1.71 OZ.)
CLAMPING FORCE 55 TONS
SCREW DIAMETER 22mm (7/8")
INJECTOR PRESSURE 2,400 BAR (34,808 P.S.I.)
PLATEN SIZE 490mm x 490mm (19.29" x 19.29")
TIE BAR DISTANCE 320mm x 320mm (12.6" x 12.6")
MAX POSSIBLE DISTANCE OF MOLD PLATTENS 655mm (25.8")
OPENING STROKE 375mm (9.84")
EJECTOR STROKE 3.937"
MAX MOLD HEIGHT 150mm HASTA 300mm (5.91" – 13.78")
NUMBER OF TEMP ZONES 1 + 3
MOTOR 10 Kw/230-460/3/60
WEIGHT 6,900 LBS. (APPROX.)

EQUIPPED WITH:

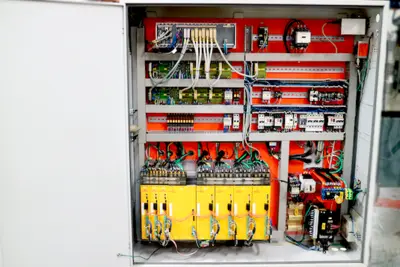

-"UNILOG" CONTROL TC40
