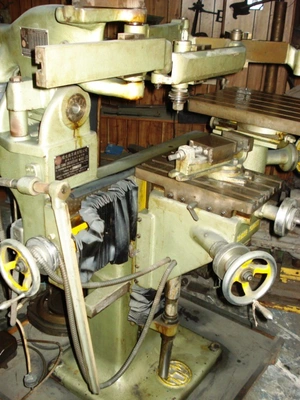

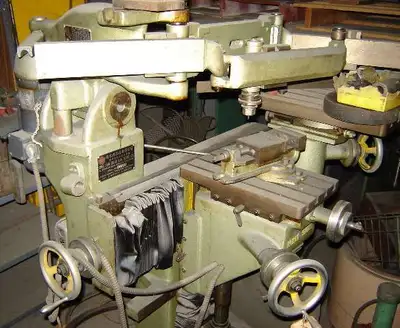

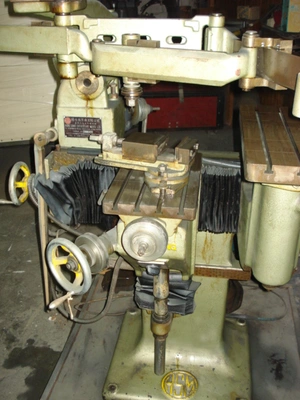

USED HUNG SANG 31 PANTO

USED "HUNG SANG" TRI-DIMENSIONAL PANTOGRAPH
MODEL 31 PANTO
SERIAL # 307
WORK TABLE 8-1/2" x 14-1/4"
MAX DISTANCE UNDER SPINDLE 6-1/4"
LONG TRAVEL 11-3/4"
CROM TRAVEL 6-1/4"
VERTICAL TRAVEL 14-1/4"
COPYING TABLE 13" x 18"
MAX DISTANCE FROM SPINDLE TO
TABLE 11-3/8"
TURNS 360°
LONG TRAVEL 8"
VERTICAL TRAVEL 12"
RATIO 1.5 TO 10
SPEEDS 8 FROM 1400 TO 1200 R.P.M.
COLLET CAPACITY 3/8"
MAX DIAM. OF WORKING PIECE 7-1/2"
MOTOR 1/2 HP/115-230/1/60
