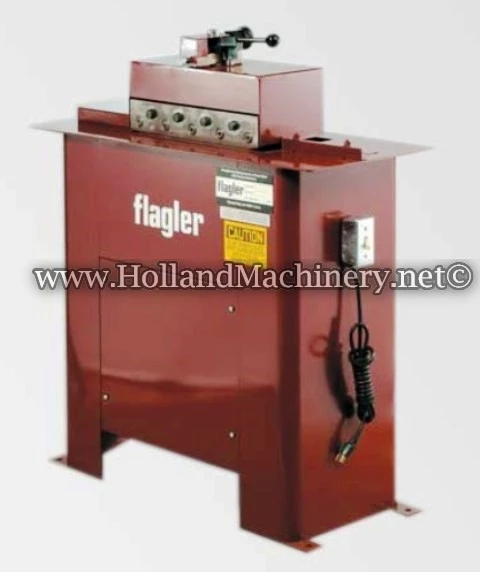

FLAGLER 20 Ga STANDARD PITTSBURGH ROLLS

NEW "FLAGLER" 20 Ga STANDARD PITTSBURGH ROLLFORMER
CAPACITY 20-26 Ga (MILD STEEL)
DEPTH OF POCKET 5/16". BUILT IN PITTSBURGH LOCK ROLLS. USES APPROX. 1" OF MATERIAL.
EXTENDED SHAFTS FOR 1 SET OF AUX. TOOLING
SPEED 23 FPM (APPROX.)
MOTOR 3/4 HP 115 /1/60/ 1,800 RPM
DRIVE V BELT
BASE ARC WELDED STEEL. HEAVY TOP PLATE
DIMENSIONS 36" x 16-1/2" x 37" HIGH FEED TABLE HEIGHT 32-5/8"
WEIGHT 320 LBS (APPROX.)

AUXILIARY TOOLING AVAILABLE:
3/8" DOUBLE SEAM ROLLS
1 1/8" DRIVE CLEAT ROLLS
3/8" RIGHT ANGLE FLANGE
